Product Summary

Universal Fit, RH Male Thread Type, Steel, Zinc Plated

    Key Specs

    MFG. Part #KMR10TS
    BrandQA1
    Material TypeSteel

    Need To Know

    Free Shipping on Orders Over $149

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

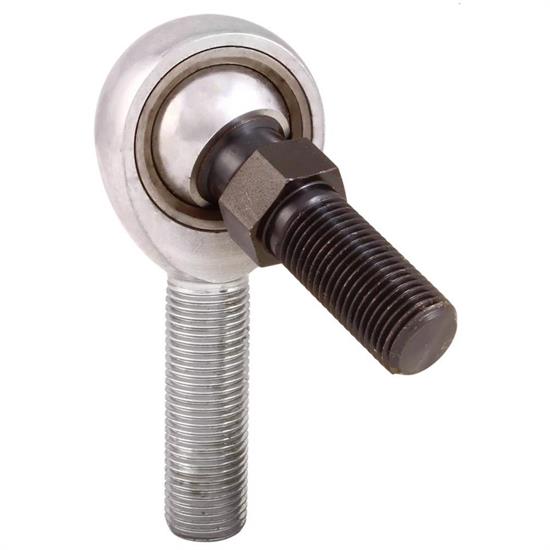

    Add a PTFE liner to the traditional three-piece carbon steel rod end and you have QA1's KM-T Carbon Steel Series rod ends. Available in right and left hand threads and inch dimensions, these truly are precision rod ends.

    Ball

    • 52100 Bearing Steel
    • Heat Treated
    • Hard Chrome Plated
    • Precision Ground

    Race

    • Alloy Steel
    • Corrosion and Wear Resistant
    • PTFE Lined

    Body

    • Carbon Steel
    • Protective Coated for Corrosion Resistance

    Specifications

    KEY SPECS
    MFG. Part #KMR10TS
    BrandQA1
    Material TypeSteel
    GENERAL
    Thread TypeRH Male
    Rod End AttachmentMale Threads/Stud
    Thread Pitch5/8"-18
    Hole Diameter0.625"
    Rod End StyleHeat-Treated Alloy Steel/PTFE Lined
    Rod End Construction3-piece
    Grease FittingNo
    FinishZinc Plated
    ColorNatural
    Thread Length1.625"
    Rod End Head Diameter1.5"
    Rod End Head Width0.75"
    Rod End Misalign Angle16 degrees
    Jam Nut IncludedNo
    Heat TreatedYes
    Load Capacity7364 lbs.
    Notes5/8"-18 Pivot stud thread
    GTIN Code806990004291
    Sold in QuantityEach
