Product Summary

Universal Fit, LH Male Thread Type, Steel, Zinc Plated

    Key Specs

    Thread TypeLH Male
    Rod End AttachmentMale Threads/Eyelet
    Thread Pitch1/2"-20
    Material TypeSteel
    Hole Diameter0.5"

    Need To Know

    Free Shipping on Orders Over $149

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

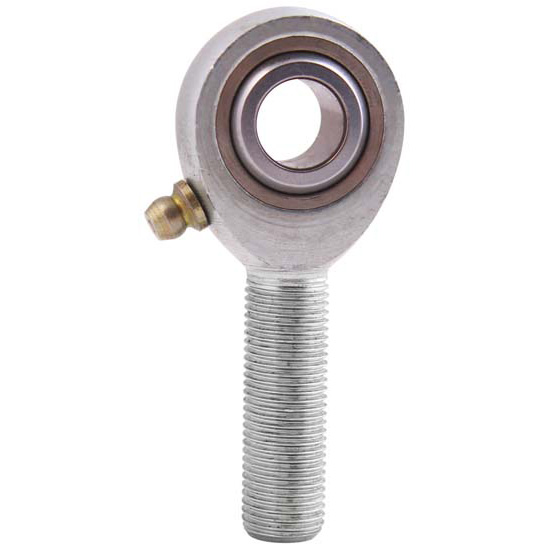

    QA1 KML8Z Details

    • QA1 KML8Z K Series Rod End
    • Carbon Steel
    • 3-Piece
    • 1/2-20 LH

    QA1 KML8Z Specifications

    KEY SPECS
    MFG. Part #KML8Z
    BrandQA1
    Thread TypeLH Male
    Rod End AttachmentMale Threads/Eyelet
    Thread Pitch1/2"-20
    Material TypeSteel
    Hole Diameter0.5"
    Rod End StyleHeat-Treated Alloy Steel Race
    Rod End Construction3-piece
    Grease FittingYes
    FinishZinc Plated
    ColorNatural
    Rod End Misalign Angle12 degrees
    Jam Nut IncludedNo
    GENERAL
    Thread Length1.500"
    Rod End Head Diameter1.312"
    Rod End Head Width0.625"
    Heat TreatedYes
    Load Capacity6660 lbs.
    GTIN Code806990045508
    Sold in QuantityEach
