Product Summary

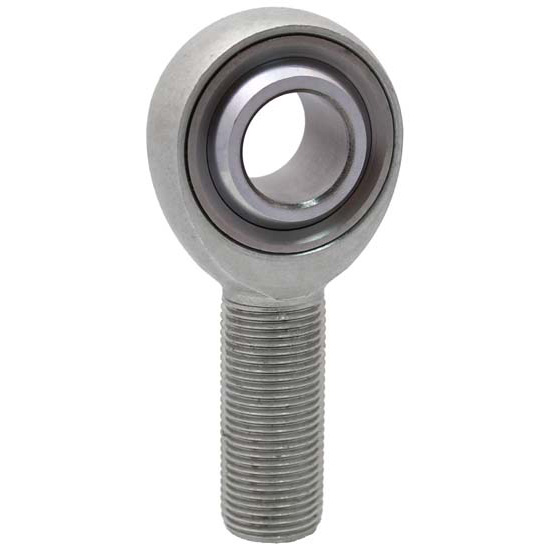

Universal Fit, LH Male Thread Type, Steel, Zinc Plated

    Key Specs

    Thread TypeLH Male
    Rod End AttachmentMale Threads/Eyelet
    Thread Pitch3/8"-24
    Material TypeSteel
    Hole Diameter0.375"

    Need To Know

    Free Shipping on Orders Over $149

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

    Add a PTFE liner to the traditional three-piece carbon steel rod end and you have QA1's KM-T Carbon Steel Series rod ends. Available in right and left hand threads and inch dimensions, these truly are precision rod ends.

    Ball

    • 52100 Bearing Steel
    • Heat Treated
    • Hard Chrome Plated
    • Precision Ground

    Race

    • Alloy Steel
    • Corrosion and Wear Resistant
    • PTFE Lined

    Body

    • Carbon Steel
    • Protective Coated for Corrosion Resistance

    Specifications

    KEY SPECS
    MFG. Part #KML6T
    BrandQA1
    Thread TypeLH Male
    Rod End AttachmentMale Threads/Eyelet
    Thread Pitch3/8"-24
    Material TypeSteel
    Hole Diameter0.375"
    Rod End StyleHeat-Treated Alloy Steel/PTFE Lined
    Rod End Construction3-piece
    Grease FittingNo
    FinishZinc Plated
    ColorNatural
    Rod End Misalign Angle12 degrees
    Jam Nut IncludedNo
    GENERAL
    Thread Length1.250"
    Rod End Head Diameter1"
    Rod End Head Width0.5"
    Heat TreatedYes
    Load Capacity3915 lbs.
    GTIN Code806990004451
    Sold in QuantityEach
