#721KML45S

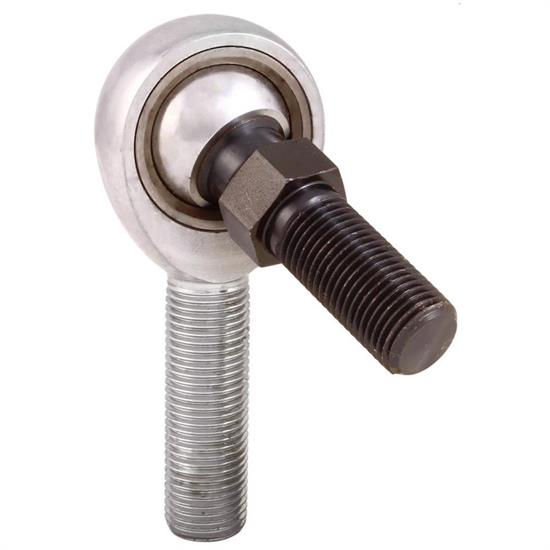

QA1 KML4-5S K Series Three Piece Rod End, Male, 1/4 Bore and 5/16-24 LH , Stud
$9.99
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before March 29th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, LH Male Thread Type, Steel, Zinc Plated
See more details
Key Specs
| Thread Type | LH Male |
| Rod End Attachment | Male Threads/Stud |
| Thread Pitch | 5/16"-24 |
| Material Type | Steel |
| Hole Diameter | 0.25" |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyQA1 KML4-5S Details
QA1 KML4-5S Details
The traditional three-piece carbon steel rod end is defined as QA1's KM Series rod ends. Available in right and left hand threads and inch dimensions, these truly are precision rod ends.
Ball
- 52100 Bearing Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
Race
- Alloy Steel
- Corrosion and Wear Resistant
Body
- Carbon Steel
- Protective Coated for Corrosion Resistance
QA1 KML4-5S Specifications
QA1 KML4-5S Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | KML4-5S |
| Brand | QA1 |
| Thread Type | LH Male |
| Rod End Attachment | Male Threads/Stud |
| Thread Pitch | 5/16"-24 |
| Material Type | Steel |
| Hole Diameter | 0.25" |
| Rod End Style | Heat-Treated Alloy Steel Race |
| Rod End Construction | 3-piece |
| Grease Fitting | No |
| Finish | Zinc Plated |
| Color | Natural |
| Rod End Misalign Angle | 13 degrees |
| Jam Nut Included | No |
| GENERAL | |
| Thread Length | 1.250" |
| Rod End Head Diameter | 0.875" |
| Rod End Head Width | 0.375" |
| Heat Treated | Yes |
| Load Capacity | 3467 lbs. |
| Notes | 1/4"-28 Pivot stud thread |
| GTIN Code | 806990044662 |
| Sold in Quantity | Each |
