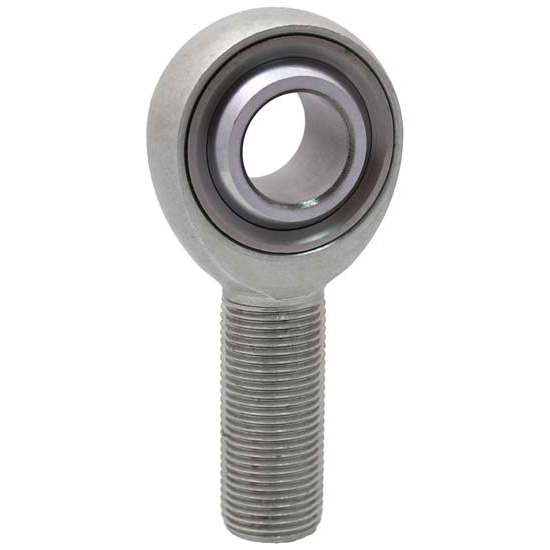

QA1 KML4-5 K Series Three Piece Rod End, Male, 1/4 Bore and 5/16-24 LH
QA1 KML4-5 K Series Three Piece Rod End, Male, 1/4 Bore and 5/16-24 LH

QA1 KML4-5 K Series Three Piece Rod End, Male, 1/4 Bore and 5/16-24 LH

Universal Fit, LH Male Thread Type, Male Threads/Eyelet Rod End Attachment, Steel, Zinc Plated

0 Reviews | 0 Answered Questions
In Stock
Can Ship FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
QA1 KML4-5 K Series Three Piece Rod End, Male, 1/4 Bore and 5/16-24 LH
QA1 KML4-5 K Series Three Piece Rod End, Male, 1/4 Bore and 5/16-24 LH
QA1 KML4-5 K Series Three Piece Rod End, Male, 1/4 Bore and 5/16-24 LH
X
QA1 KML4-5 K Series Three Piece Rod End, Male, 1/4 Bore and 5/16-24 LH
Zoomed In Image
Part # 721KML45
$9.99
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Thread Type:
LH Male
Rod End Attachment:
Male Threads/Eyelet
Thread Pitch:
5/16"-24
Material Type:
Steel
Hole Diameter:
0.25"
Rod End Style:
Heat-Treated Alloy Steel Race
Rod End Construction:
3-piece
Grease Fitting:
No
Finish:
Zinc Plated
Color:
Natural
Thread Length:
1.250"
Rod End Head Diameter:
0.875"
Rod End Head Width:
0.375"
Rod End Misalign Angle:
13 degrees
Jam Nut Included:
No
Heat Treated:
Yes
Load Capacity:
3467 lbs.
MFG. Part #:
KML4-5
GTIN Code:
806990003706
Sold in Quantity:
Each

Info

The traditional three-piece carbon steel rod end is defined as QA1's KM Series rod ends. Available in right and left hand threads and inch dimensions, these truly are precision rod ends.

Ball

  • 52100 Bearing Steel
  • Heat Treated
  • Hard Chrome Plated
  • Precision Ground

Race

  • Alloy Steel
  • Corrosion and Wear Resistant

Body

  • Carbon Steel
  • Protective Coated for Corrosion Resistance
