Product Summary

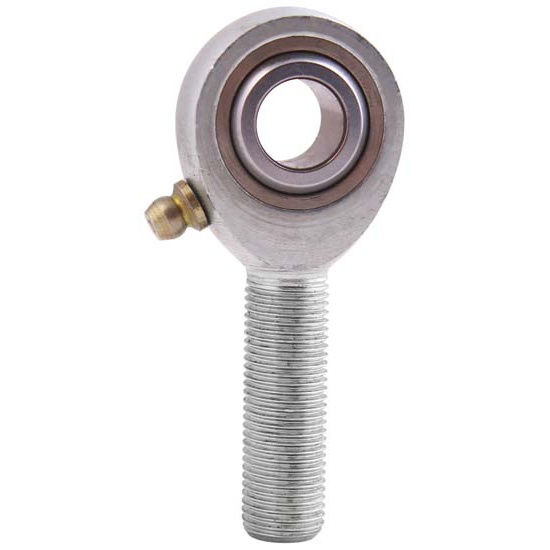

Universal Fit, LH Male Thread Type, Steel, Zinc Plated

    Key Specs

    Thread TypeLH Male
    Rod End AttachmentMale Threads/Eyelet
    Thread Pitch5/8"-18
    Material TypeSteel
    Hole Diameter0.625"

    Need To Know

    Free Shipping on Orders Over $149

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

    • QA1 KML10Z K Series Rod End
    • Carbon Steel
    • 3-Piece
    • 5/8-18 LH

    Specifications

    KEY SPECS
    MFG. Part #KML10Z
    BrandQA1
    Thread TypeLH Male
    Rod End AttachmentMale Threads/Eyelet
    Thread Pitch5/8"-18
    Material TypeSteel
    Hole Diameter0.625"
    Rod End StyleHeat-Treated Alloy Steel Race
    Rod End Construction3-piece
    Grease FittingYes
    FinishZinc Plated
    ColorNatural
    Rod End Misalign Angle16 degrees
    Jam Nut IncludedNo
    GENERAL
    Thread Length1.625"
    Rod End Head Diameter1.5"
    Rod End Head Width0.75"
    Heat TreatedYes
    Load Capacity7364 lbs.
    GTIN Code806990045829
    Sold in QuantityEach
