Product Summary

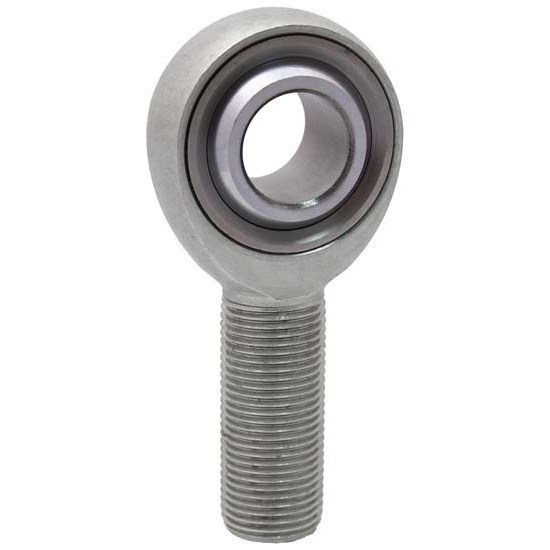

Universal Fit, LH Male Thread Type, Steel, Zinc Plated

    Key Specs

    MFG. Part #KML10T
    BrandQA1
    Material TypeSteel

    Need To Know

    Free Shipping on Orders Over $149

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

    Add a PTFE liner to the traditional three-piece carbon steel rod end and you have QA1's KM-T Carbon Steel Series rod ends. Available in right and left hand threads and inch dimensions, these truly are precision rod ends.

    Ball

    • 52100 Bearing Steel
    • Heat Treated
    • Hard Chrome Plated
    • Precision Ground

    Race

    • Alloy Steel
    • Corrosion and Wear Resistant
    • PTFE Lined

    Body

    • Carbon Steel
    • Protective Coated for Corrosion Resistance

    Specifications

    KEY SPECS
    MFG. Part #KML10T
    BrandQA1
    Material TypeSteel
    GENERAL
    Thread TypeLH Male
    Rod End AttachmentMale Threads/Eyelet
    Thread Pitch5/8"-18
    Hole Diameter0.625"
    Rod End StyleHeat-Treated Alloy Steel/PTFE Lined
    Rod End Construction3-piece
    Grease FittingNo
    FinishZinc Plated
    ColorNatural
    Thread Length1.625"
    Rod End Head Diameter1.5"
    Rod End Head Width0.75"
    Rod End Misalign Angle16 degrees
    Jam Nut IncludedNo
    Heat TreatedYes
    Load Capacity7364 lbs.
    GTIN Code806990004512
    Sold in QuantityEach
