#721KFR5S

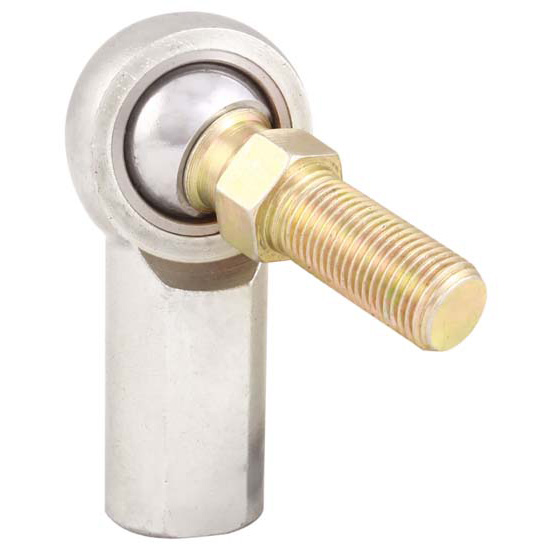

QA1 KFR5S K Series Rod End, Carbon Steel, 3-Piece, Each
$9.99
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before April 12th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, RH Female Thread Type, Steel, Natural
See more details
Key Specs
| Thread Type | RH Female |
| Rod End Attachment | Female Threads/Stud |
| Thread Pitch | 5/16"-24 |
| Material Type | Steel |
| Hole Diameter | 0.313" |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyQA1 KFR5S Details
QA1 KFR5S Details
- QA1 KFR5S K Series Rod End
- Carbon Steel
- 3-Piece
- 5/16-24 RH
QA1 KFR5S Specifications
QA1 KFR5S Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | KFR5S |
| Brand | QA1 |
| Thread Type | RH Female |
| Rod End Attachment | Female Threads/Stud |
| Thread Pitch | 5/16"-24 |
| Material Type | Steel |
| Hole Diameter | 0.313" |
| Rod End Style | Heat-Treated Alloy Steel Race |
| Rod End Construction | 3-piece |
| Grease Fitting | No |
| Finish | Zinc Plated |
| Color | Natural |
| Rod End Misalign Angle | 14 degrees |
| Jam Nut Included | No |
| GENERAL | |
| Thread Length | 0.750" |
| Rod End Head Diameter | 0.875" |
| Rod End Head Width | 0.437" |
| Heat Treated | Yes |
| Load Capacity | 3133 lbs. |
| Notes | 5/16"-24 Pivot stud thread |
| GTIN Code | 806990044778 |
| Sold in Quantity | Each |
