#721KFR4T

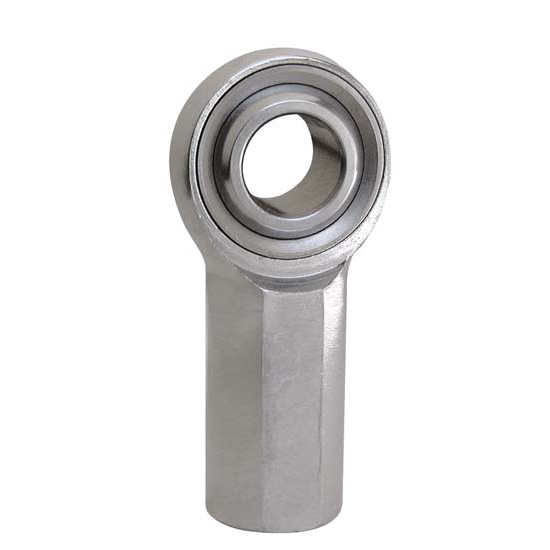

QA1 KFR4T K Series Three Piece Rod End, Female, 1/4 Bore and 1/4-28 RH
$14.99
/each
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Key Specs
| Thread Type | RH Female |
| Rod End Attachment | Female Threads/Eyelet |
| Thread Pitch | 1/4"-28 |
| Material Type | Steel |
| Hole Diameter | 0.25" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyQA1 KFR4T Details
QA1 KFR4T Details
Add a PTFE liner to the traditional three-piece carbon steel female rod end and you have QA1's KF-T Carbon Steel Series rod ends. Available in right and left hand threads and inch dimensions, these truly are precision rod ends.
Ball
- 52100 Bearing Steel
- Heat Treated Hard Chrome Plated
- Precision Ground
Race
- Alloy Steel Corrosion and Wear Resistant
- PTFE Lined
Body
- Carbon Steel
- Protective Coated for Corrosion Resistance"
Guides & Documents
QA1 KFR4T Specifications
QA1 KFR4T Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | KFR4T |
| Brand | QA1 |
| Thread Type | RH Female |
| Rod End Attachment | Female Threads/Eyelet |
| Thread Pitch | 1/4"-28 |
| Material Type | Steel |
| Hole Diameter | 0.25" |
| Rod End Style | PTFE Lined |
| Rod End Construction | 3-piece |
| Grease Fitting | No |
| Finish | Zinc Plated |
| Color | Natural |
| Bushing Material | PTFE |
| Jam Nut Included | No |
| GENERAL | |
| Thread Length | 0.750" |
| Rod End Head Diameter | 0.75" |
| Rod End Head Width | 0.375" |
| Rod End Misalign Angle | 16 degrees |
| Load Capacity | 2539 lbs. |
| GTIN Code | 806990004628 |
| Sold in Quantity | Each |
