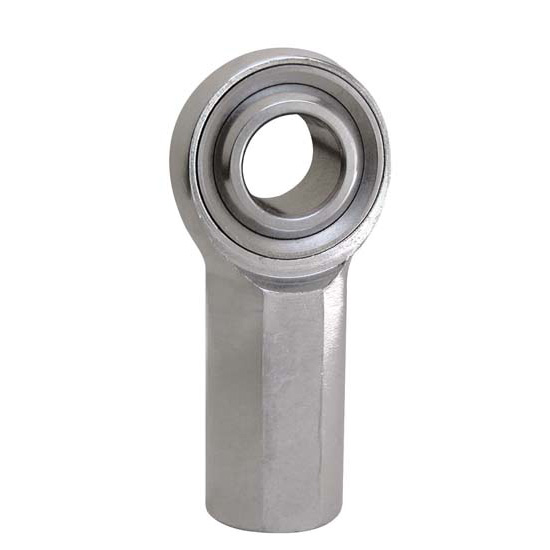

QA1 HFR14 H Series Rod End, Chromoly Steel, 3-Piece, Each
- QA1's HF Series female rod ends are a traditional three-piece chromoly steel rod end
- These precision rod ends are heat treated
- BALL, 52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground, , RACE, Chromoly Heat Treated Steel, Corrosion and Wear Resistant, , BODY, Chromoly Steel, Heat Treated, Protective Coated for Corrosion Resistance.
$45.99
/each
Factory Shipped
$65.87
Save $19.88
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, RH Female Thread Type, Chromoly, Natural
- QA1's HF Series female rod ends are a traditional three-piece chromoly steel rod end
- These precision rod ends are heat treated
- BALL, 52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground, , RACE, Chromoly Heat Treated Steel, Corrosion and Wear Resistant, , BODY, Chromoly Steel, Heat Treated, Protective Coated for Corrosion Resistance.
Key Specs
| Thread Type | RH Female |
| Rod End Attachment | Female Threads/Eyelet |
| Thread Pitch | 7/8"-14 |
| Material Type | Chromoly |
| Hole Diameter | 0.875" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyQA1 HFR14 Details
QA1 HFR14 Details
- QA1's HF Series female rod ends are a traditional three-piece chromoly steel rod end
- These precision rod ends are heat treated
- BALL, 52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground, , RACE, Chromoly Heat Treated Steel, Corrosion and Wear Resistant, , BODY, Chromoly Steel, Heat Treated, Protective Coated for Corrosion Resistance.
Guides & Documents
QA1 HFR14 Specifications
QA1 HFR14 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | HFR14 |
| Brand | QA1 |
| Thread Type | RH Female |
| Rod End Attachment | Female Threads/Eyelet |
| Thread Pitch | 7/8"-14 |
| Material Type | Chromoly |
| Hole Diameter | 0.875" |
| Rod End Style | Metal-to-metal |
| Rod End Construction | 3-piece |
| Grease Fitting | No |
| Finish | Zinc Plated |
| Color | Natural |
| Bushing Material | Steel |
| Jam Nut Included | No |
| GENERAL | |
| Thread Length | 1.875" |
| Rod End Ball Diameter | 0.875" |
| Rod End Head Diameter | 2" |
| Rod End Head Width | 0.875" |
| Rod End Misalign Angle | 7 degrees |
| Heat Treated | Yes |
| Load Capacity | 45051 lbs. |
| GTIN Code | 806990005434 |
| Sold in Quantity | Each |
