#721HFL5
QA1 HFL5 H Series Three Piece Rod End, 5/16 Bore, LH 5/16-24 Threads
$13.99
/each
Factory Shipped
$14.32
Save $0.33
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Key Specs
| Thread Type | LH Female |
| Rod End Attachment | Female Threads/Eyelet |
| Thread Pitch | 5/16"-24 |
| Material Type | Chromoly |
| Hole Diameter | 0.313" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyQA1 HFL5 Details
QA1 HFL5 Details

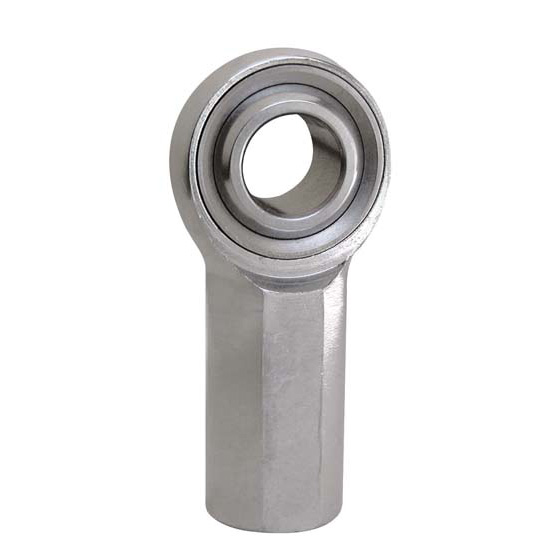

Female 3-Piece Rod End QA1's HF Series female rod ends are a traditional three-piece chromoly steel rod end. These precision rod ends are heat treated, are available in right and left hand threads and in metric and inch dimensions.
Ball
- 52100 Bearing Steel
- Heat Treated Hard Chrome Plated
- Precision Ground
Race
- Chromoly Heat Treated
- Steel Corrosion and Wear Resistant
Body
- Chromoly Steel
- Heat Treated Protective Coated for Corrosion Resistance"
Guides & Documents
QA1 HFL5 Specifications
QA1 HFL5 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | HFL5 |
| Brand | QA1 |
| Thread Type | LH Female |
| Rod End Attachment | Female Threads/Eyelet |
| Thread Pitch | 5/16"-24 |
| Material Type | Chromoly |
| Hole Diameter | 0.313" |
| Rod End Style | Metal-to-metal |
| Rod End Construction | 3-piece |
| Grease Fitting | No |
| Finish | Zinc Plated |
| Color | Natural |
| Bushing Material | Steel |
| Jam Nut Included | No |
| GENERAL | |
| Thread Length | 0.750" |
| Rod End Head Diameter | 0.875" |
| Rod End Head Width | 0.437" |
| Rod End Misalign Angle | 14 degrees |
| Heat Treated | Yes |
| Load Capacity | 7637 lbs. |
| GTIN Code | 806990005496 |
| Sold in Quantity | Each |
