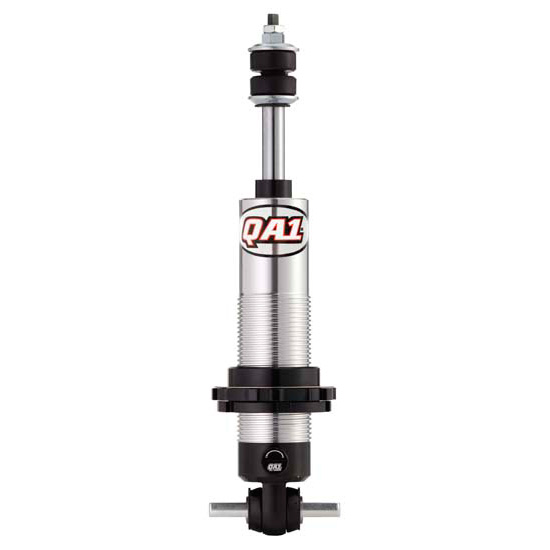

QA1 GS507 507 GM Single Adjustable Front Coil-Over Shock
QA1 GS507 507 GM Single Adjustable Front Coil-Over Shock
63-82 Chevy Corvette, 65-85 Chevy Impala, 94-96 Chevy Impala, Front Position, 5.00 Shock Stroke
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Limited Qty
Select Vehicle
QA1 GS507 507 GM Single Adjustable Front Coil-Over Shock
X
Part # 721GS507
$199.95
$209.95
each
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
- Specifically designed for 1963-1982 Corvettes, 1965-1996 Impalas and 1958-1996 Full Size GM vehicles
- Ideal for anyone looking for adjustable valving control
- Features a lightweight billet aluminum construction
- They are serviceable and rebuildable by QA1 authorized service centers
- Upper shock mount has a stud and the lower is a T-bar
Details
Position:
Front
Shock Adjustability:
Single Adjustable
Shock Type:
Twin Tube
Shock Body Material:
Aluminum
Shock Stroke:
5.00
Upper Shock Mount:
Stud
Lower Shock Mount:
T-Bar
Compressed Length Range:
9.00" to 9.99"
Compressed Length:
9.63"
Extended Length Range:
14.00" to 14.99"
Extended Length:
14.50"
Height Adjustable:
Yes
Number of Valving Selections:
18
Finish:
Clear Anodized
Coilover Springs Included:
No
Bushing Material:
Polyurethane
Body Diameter:
2.00"
Sold in Quantity:
Kit
Adjustable:
Yes
MFG. Part #:
GS507
Info
The QA1 GM Coil-Over Shock for 1963-1982 Corvettes, 1965-1996 Impalas and 1958-1996 Full Size GM vehicles, including Full Size Chevy, Buick, Oldsmobile and Pontiac models, is a great option for anyone looking for adjustable valving control. This shock is a great option for anyone looking for a suspension upgrade for their street car.
- Single adjustable
- Lightweight Billet Aluminum Coil-Over Shocks
- Made in the USA
- Easy, Bolt-In Installation
- Ride Height Adjustable
- 100% Dyno Tested and Serialized
- Serviceable and Rebuildable by QA1 Authorized Service Centers
- 9.63" compressed height
- 14.50" extended height
Charts
Installation Instructions (PDF)
Warranties
Important Messages
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
