Product Summary

Universal Fit, RH Male Thread Type, Stainless Steel

    Key Specs

    MFG. Part #GMR5TS
    BrandQA1
    Material TypeStainless Steel

    Need To Know

    Free Shipping on Orders Over $149

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

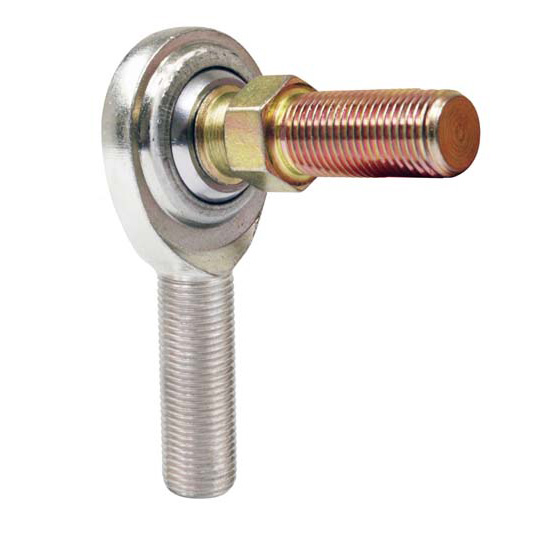

    QA1's GM-T Stainless Steel Series male rod ends are PTFE lined two-piece rod ends. They are available in metric and inch dimensions, and in both right and left hand thread.

    Ball

    • 440C Stainless Steel
    • Heat Treated
    • Precision Ground

    Body

    • 300 Series Stainless Steel
    • PTFE Lined

    Specifications

    KEY SPECS
    MFG. Part #GMR5TS
    BrandQA1
    Material TypeStainless Steel
    GENERAL
    Thread TypeRH Male
    Rod End AttachmentMale Threads/Stud
    Thread Pitch5/16"-24
    Hole Diameter0.313"
    Rod End StylePTFE Lined
    Rod End Construction2-piece
    Grease FittingNo
    FinishNatural
    ColorNatural
    Thread Length1.250"
    Rod End Head Diameter0.875"
    Rod End Head Width0.437"
    Rod End Misalign Angle22 degrees
    Jam Nut IncludedNo
    Heat TreatedYes
    Load Capacity3278 lbs.
    Notes5/16"-24 Pivot stud thread
    GTIN Code806990002693
    Sold in QuantityEach
