#721GMR5T

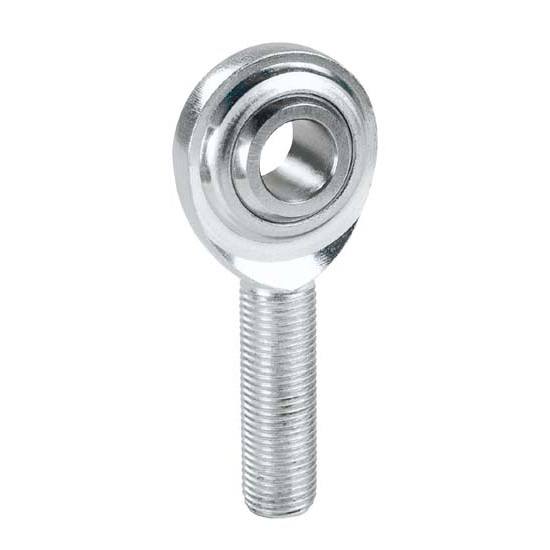

QA1 GMR5T G Series Rod End, Stainless Steel, 2-Piece, Each
$17.99
/each
Factory Shipped
$18.26
Save $0.27
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Key Specs
| Thread Type | RH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 5/16"-24 |
| Material Type | Stainless Steel |
| Hole Diameter | 0.313" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyQA1 GMR5T Details
QA1 GMR5T Details
QA1's GM-T Stainless Steel Series male rod ends are PTFE lined two-piece rod ends. They are available in metric and inch dimensions, and in both right and left hand thread.
Ball
- 440C Stainless Steel
- Heat Treated
- Precision Ground
Body
- 300 Series Stainless Steel
- PTFE Lined
Guides & Documents
QA1 GMR5T Specifications
QA1 GMR5T Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | GMR5T |
| Brand | QA1 |
| Thread Type | RH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 5/16"-24 |
| Material Type | Stainless Steel |
| Hole Diameter | 0.313" |
| Rod End Style | PTFE Lined |
| Rod End Construction | 2-piece |
| Grease Fitting | No |
| Finish | Natural |
| Color | Natural |
| Bushing Material | PTFE |
| Jam Nut Included | No |
| GENERAL | |
| Thread Length | 1.250" |
| Rod End Head Diameter | 0.875" |
| Rod End Head Width | 0.437" |
| Rod End Misalign Angle | 22 degrees |
| Heat Treated | Yes |
| Load Capacity | 3278 lbs. |
| GTIN Code | 806990002693 |
| Sold in Quantity | Each |
Ratings & Reviews
Ratings & Reviews
Questions & Answers
Questions & Answers
1 Question • 1 Answer
I am going to put an anti-roll bar on the rear of a 4400 lb wagon. The bar is going to be attached to the axle, and pivot on the frame. Would these suffice for the links to the frame?
