#721GML4T

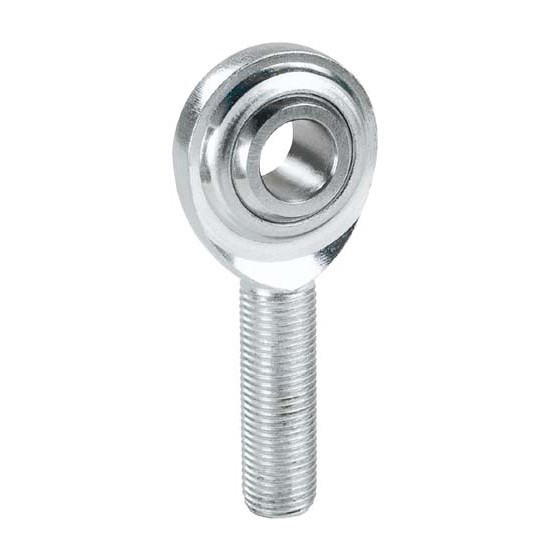

QA1 GML4T G Series Rod End, Stainless Steel, 1/4-28 LH Male Thread
$11.99
/each
Factory Shipped
$16.59
Save $4.60
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Key Specs
| Thread Type | LH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 1/4"-28 |
| Material Type | Stainless Steel |
| Hole Diameter | 0.25" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyQA1 GML4T Details
QA1 GML4T Details
QA1's GM-T Stainless Steel Series male rod ends are PTFE lined two-piece rod ends. They are available in metric and inch dimensions, and in both right and left hand thread.
Ball
- 440C Stainless Steel
- Heat Treated
- Precision Ground
Body
- 300 Series Stainless Steel
- PTFE Lined
Guides & Documents
QA1 GML4T Specifications
QA1 GML4T Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | GML4T |
| Brand | QA1 |
| Thread Type | LH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 1/4"-28 |
| Material Type | Stainless Steel |
| Hole Diameter | 0.25" |
| Rod End Style | PTFE Lined |
| Rod End Construction | 2-piece |
| Grease Fitting | No |
| Finish | Natural |
| Color | Natural |
| Bushing Material | PTFE |
| Jam Nut Included | No |
| GENERAL | |
| Thread Length | 1.000" |
| Rod End Head Diameter | 0.75" |
| Rod End Head Width | 0.375" |
| Rod End Misalign Angle | 27 degrees |
| Heat Treated | Yes |
| Load Capacity | 2165 lbs. |
| GTIN Code | 806990002761 |
| Sold in Quantity | Each |
