QA1 GFR12T G Series Rod End, Stainless Steel, 2-Piece, Each

Customer Appreciation Week 2026

QA1 GFR12T G Series Rod End, Stainless Steel, 2-Piece, Each
QA1

|

#721GFR12T

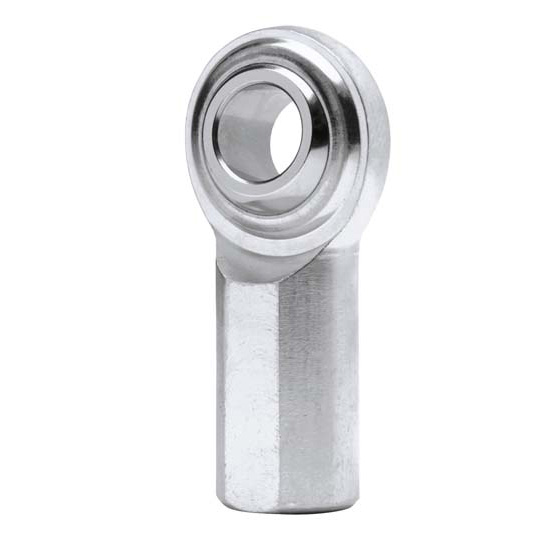

QA1 GFR12T G Series Rod End, Stainless Steel, 2-Piece, Each

$45.99

/each

In Stock

$66.30

Save $20.31


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, RH Female Thread Type, Stainless Steel

    See more details

    Key Specs

    Thread TypeRH Female
    Rod End AttachmentFemale Threads/Eyelet
    Thread Pitch3/4"-16
    Material TypeStainless Steel
    Hole Diameter0.75"
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    QA1 GFR12T Details

    QA1's GF-T Stainless Steel Series female rod ends are PTFE lined two-piece rod ends. They are available in metric and inch dimensions, and in both right and left hand thread.

    Ball

    • 440C Stainless Steel
    • Heat Treated
    • Precision Ground

    Body

    • 300 Series Stainless Steel
    • PTFE Lined"

    Guides & Documents

    Warranty (QA1)

    QA1 GFR12T Specifications

    KEY SPECS
    MFG. Part #GFR12T
    BrandQA1
    Thread TypeRH Female
    Rod End AttachmentFemale Threads/Eyelet
    Thread Pitch3/4"-16
    Material TypeStainless Steel
    Hole Diameter0.75"
    Rod End StylePTFE Lined
    Rod End Construction2-piece
    Grease FittingNo
    FinishNatural
    ColorNatural
    Bushing MaterialPTFE
    Jam Nut IncludedNo
    GENERAL
    Thread Length1.562"
    Rod End Head Diameter1.75"
    Rod End Head Width0.875"
    Rod End Misalign Angle24 degrees
    Heat TreatedYes
    Load Capacity11595 lbs.
    GTIN Code806990002907
    Sold in QuantityEach
