#721EXMR12
$23.99
/each
In Stock
$28.34
Save $4.35
Order soon, only 3 left in stock!
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
| Thread Type | RH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 3/4"-16 |
| Material Type | Steel |
| Hole Diameter | 0.75" |
Need help?
855.313.9176Quick and Easy Returns

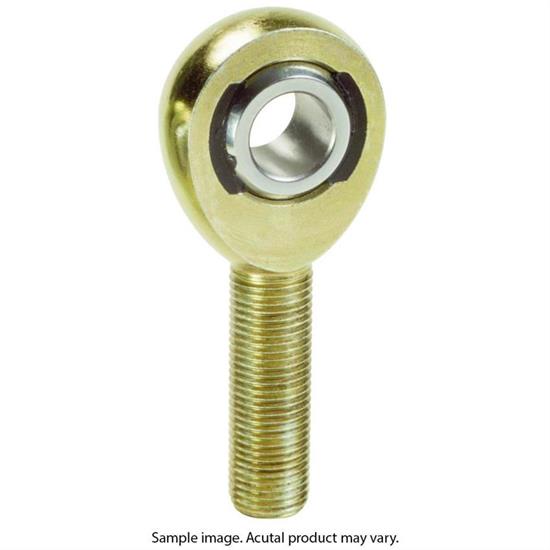

Return PolicyAs an economical alternative to chromoly, QA1 is the exclusive provider of carbon steel loader slot rod ends. QA1's EXM Carbon Steel Series male rod ends have increased cross-sectional thickness and are completely self-sealing and self-lubricating. The Nylon/PTFE injection molded race won't pound out like other styles and keeps dirt and debris out for excellent performance.
Ball
Race
Body
Exclusive Features
Guides & Documents
CA WARNING:
Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov
| KEY SPECS | |
|---|---|
| MFG. Part # | EXMR12 |
| Brand | QA1 |
| Thread Type | RH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 3/4"-16 |
| Material Type | Steel |
| Hole Diameter | 0.75" |
| Rod End Style | Nylon/PTFE Lined |
| Rod End Construction | 3-piece |
| Grease Fitting | No |
| Finish | Zinc Plated |
| Color | Natural |
| Bushing Material | PTFE |
| Jam Nut Included | No |
| GENERAL | |
| Thread Length | 1.75" |
| Rod End Head Diameter | 1.75" |
| Rod End Head Width | 0.875" |
| Rod End Misalign Angle | 14 degrees |
| Heat Treated | Yes |
| Load Capacity | 16565 lbs. |
| GTIN Code | 806990007933 |
| Sold in Quantity | Each |
