#721EXML67

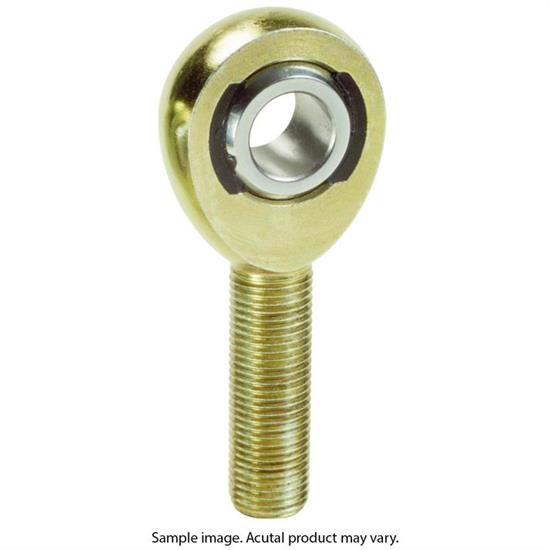

QA1 EXML6-7 EX Series Rod End, Carbon Steel, 2-Piece, Each
$9.99
each
In Stock
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, LH Male Thread Type, Steel, Zinc Plated
See more details
Key Specs
| Thread Type | LH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 7/16"-20 |
| Material Type | Steel |
| Hole Diameter | 0.375" |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyQA1 EXML6-7 Details
QA1 EXML6-7 Details
As an economical alternative to chromoly, QA1 is the exclusive provider of carbon steel loader slot rod ends. QA1's EXM Carbon Steel Series male rod ends have increased cross-sectional thickness and are completely self-sealing and self-lubricating. The Nylon/PTFE injection molded race won't pound out like other styles and keeps dirt and debris out for excellent performance.
Ball
- 52100 Bearing Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
Race
- Nylon/PTFE
- Self-Lubricating
- Self-Sealing
Body
- Carbon Steel
- Protective Coated for Corrosion Resistance
Exclusive Features
- Metal to Metal Support for Heavy Shock Loads
- Increased Cross-Sectional Thickness for Greater Tensile Strength
QA1 EXML6-7 Specifications
QA1 EXML6-7 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | EXML6-7 |
| Brand | QA1 |
| Thread Type | LH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 7/16"-20 |
| Material Type | Steel |
| Hole Diameter | 0.375" |
| Rod End Style | Nylon/PTFE Lined |
| Rod End Construction | 3-piece |
| Grease Fitting | No |
| Finish | Zinc Plated |
| Color | Natural |
| Rod End Misalign Angle | 10 degrees |
| Jam Nut Included | No |
| GENERAL | |
| Thread Length | 1.375" |
| Rod End Head Diameter | 1.125" |
| Rod End Head Width | 0.5" |
| Heat Treated | Yes |
| Load Capacity | 7180 lbs. |
| GTIN Code | 806990008015 |
| Sold in Quantity | Each |
