#721EXML3

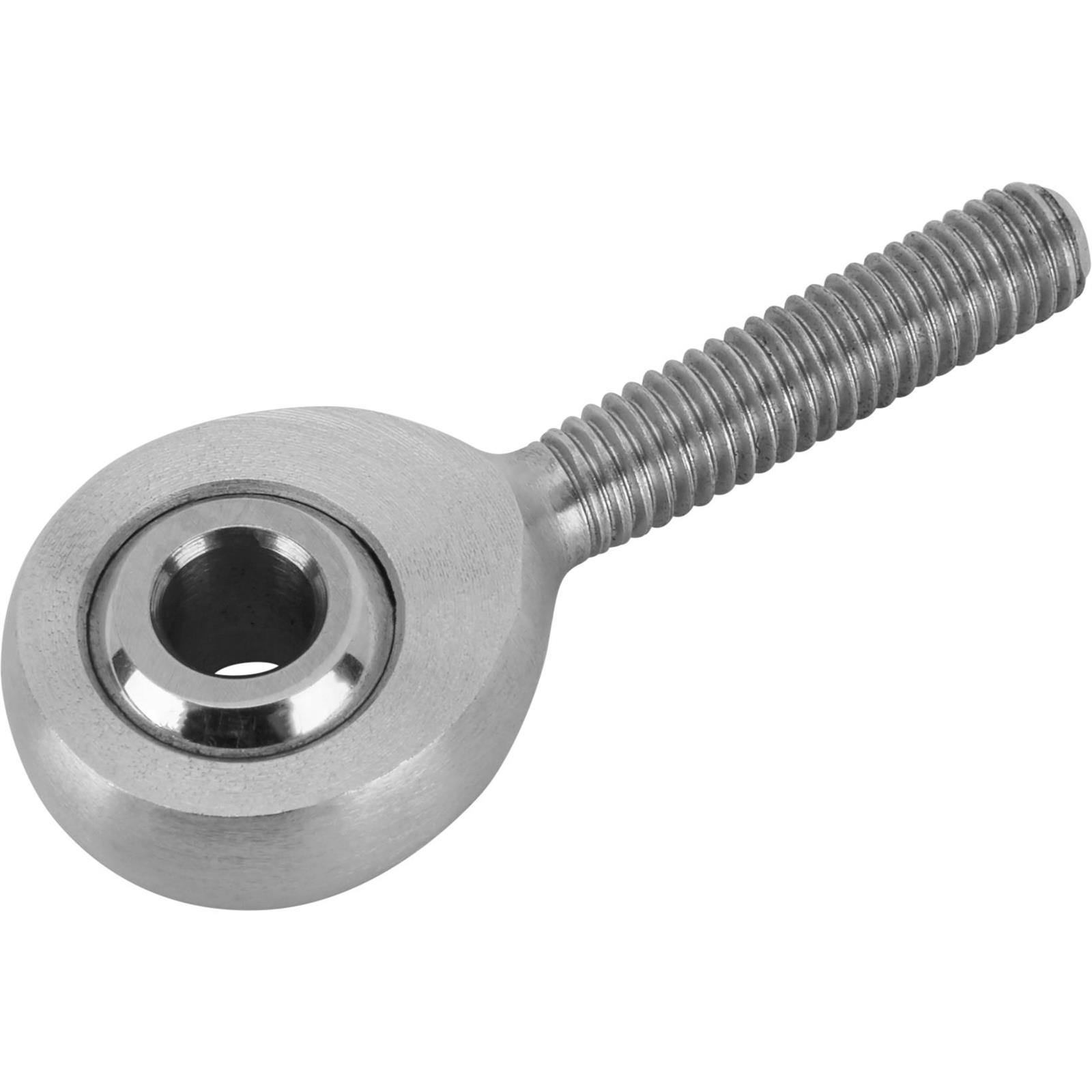

QA1 EXML3 EX Series Carbon Steel Rod End, Male, LH 3/16 Bore, 10-32 Threads
$8.69
/each
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Key Specs
| Thread Type | LH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 3/16" (10-32) |
| Material Type | Steel |
| Hole Diameter | 0.19" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyQA1 EXML3 Details
QA1 EXML3 Details
As an economical alternative to chromoly, QA1 is the exclusive provider of carbon steel loader slot rod ends. QA1's EXM Carbon Steel Series male rod ends have increased cross-sectional thickness and are completely self-sealing and self-lubricating. The Nylon/PTFE injection molded race won't pound out like other styles and keeps dirt and debris out for excellent performance.
Ball
- 52100 Bearing Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
Race
- Nylon/PTFE
- Self-Lubricating
- Self-Sealing
Body
- Carbon Steel
- Protective Coated for Corrosion Resistance
Exclusive Features
- Metal to Metal Support for Heavy Shock Loads
- Increased Cross-Sectional Thickness for Greater Tensile Strength
Guides & Documents
QA1 EXML3 Specifications
QA1 EXML3 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | EXML3 |
| Brand | QA1 |
| Thread Type | LH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 3/16" (10-32) |
| Material Type | Steel |
| Hole Diameter | 0.19" |
| Rod End Style | Nylon/PTFE Lined |
| Rod End Construction | 3-piece |
| Grease Fitting | No |
| Finish | Zinc Plated |
| Color | Natural |
| Bushing Material | PTFE |
| Jam Nut Included | No |
| GENERAL | |
| Thread Length | 0.750" |
| Rod End Head Diameter | 0.625" |
| Rod End Head Width | 0.312" |
| Rod End Misalign Angle | 13 degrees |
| Heat Treated | Yes |
| Load Capacity | 1169 lbs. |
| GTIN Code | 806990007940 |
| Sold in Quantity | Each |
