Product Summary

Universal Fit, RH Female Thread Type, Steel, Natural

    Key Specs

    Thread TypeRH Female
    Rod End AttachmentFemale Threads/Eyelet
    Thread Pitch5/16"-24
    Material TypeSteel
    Hole Diameter0.313"

    Need To Know

    Free Shipping on Orders Over $149

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

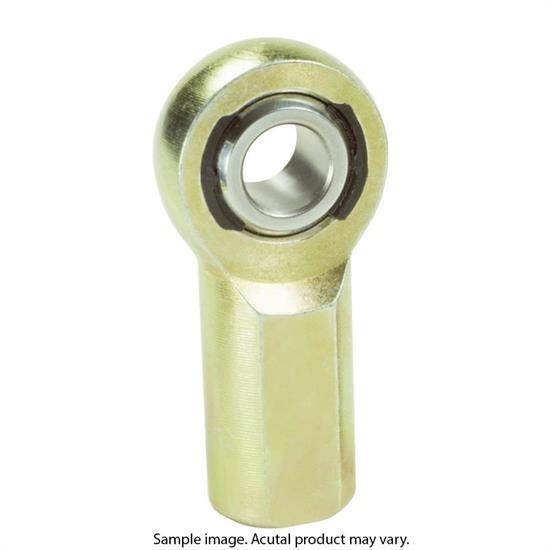

    QA1 EXFR5 Details

    As an economical alternative to chromoly, QA1 is the exclusive provider of carbon steel loader slot rod ends. Qa1's EXF Carbon Steel Series female rod ends have increased cross-sectional thickness and are completely self-sealing and self-lubricating. The Nylon/PTFE injection molded race won't pound out like other styles and keeps dirt and debris out for excellent performance.

    Ball

    • 52100 Bearing Steel
    • Heat Treated
    • Hard Chrome Plated
    • Precision Ground

    Race

    • Nylon/PTFE
    • Self-Lubricating
    • Self-Sealing

    Body

    • Carbon Steel
    • Protective Coated for Corrosion Resistance

    Exclusive Features

    • Metal to Metal Support for Heavy
    • Shock Loads
    • Increa

    QA1 EXFR5 Specifications

    KEY SPECS
    MFG. Part #EXFR5
    BrandQA1
    Thread TypeRH Female
    Rod End AttachmentFemale Threads/Eyelet
    Thread Pitch5/16"-24
    Material TypeSteel
    Hole Diameter0.313"
    Rod End StyleNylon/PTFE Lined
    Rod End Construction3-piece
    Grease FittingNo
    FinishZinc Plated
    ColorNatural
    Rod End Misalign Angle14 degrees
    Jam Nut IncludedNo
    GENERAL
    Thread Length0.750"
    Rod End Head Diameter0.875"
    Rod End Head Width0.437"
    Heat TreatedYes
    Load Capacity3133 lbs.
    GTIN Code806990008114
    Sold in QuantityEach
