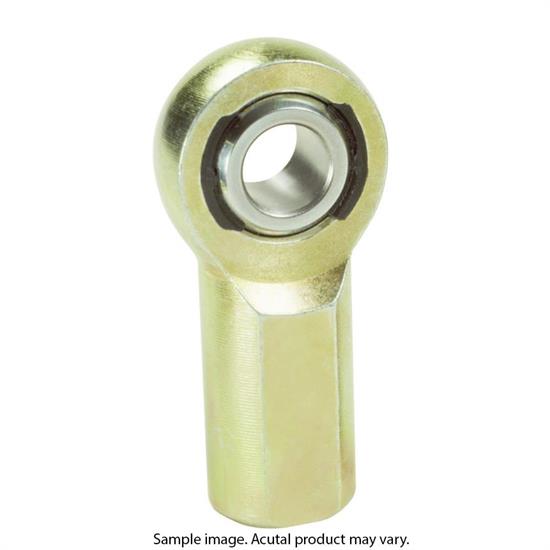

QA1 EXFR4 EX Series Carbon Steel Rod End, Female, RH 1/4 Bore, 1/4-28
QA1 EXFR4 EX Series Carbon Steel Rod End, Female, RH 1/4 Bore, 1/4-28

QA1 EXFR4 EX Series Carbon Steel Rod End, Female, RH 1/4 Bore, 1/4-28

Universal Fit, RH Female Thread Type, Female Threads/Eyelet Rod End Attachment, Steel, Natural

0 Reviews | 0 Answered Questions
Factory Shipped
Can Ship FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
QA1 EXFR4 EX Series Carbon Steel Rod End, Female, RH 1/4 Bore, 1/4-28
QA1 EXFR4 EX Series Carbon Steel Rod End, Female, RH 1/4 Bore, 1/4-28
QA1 EXFR4 EX Series Carbon Steel Rod End, Female, RH 1/4 Bore, 1/4-28
X
QA1 EXFR4 EX Series Carbon Steel Rod End, Female, RH 1/4 Bore, 1/4-28
Zoomed In Image
We estimate this item will ship on or before October 5th.
Part # 721EXFR4
$7.99
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Thread Type:
RH Female
Rod End Attachment:
Female Threads/Eyelet
Thread Pitch:
1/4"-28
Material Type:
Steel
Hole Diameter:
0.250"
Rod End Style:
Nylon/PTFE Lined
Rod End Construction:
3-piece
Grease Fitting:
No
Finish:
Zinc Plated
Color:
Natural
Thread Length:
0.750"
Rod End Head Diameter:
0.75"
Rod End Head Width:
0.375"
Rod End Misalign Angle:
16 degrees
Jam Nut Included:
No
Heat Treated:
Yes
Load Capacity:
2539 lbs.
MFG. Part #:
EXFR4
GTIN Code:
806990008107
Sold in Quantity:
Each

Info

As an economical alternative to chromoly, QA1 is the exclusive provider of carbon steel loader slot rod ends. Qa1's EXF Carbon Steel Series female rod ends have increased cross-sectional thickness and are completely self-sealing and self-lubricating. The Nylon/PTFE injection molded race won't pound out like other styles and keeps dirt and debris out for excellent performance.

Ball

  • 52100 Bearing Steel
  • Heat Treated
  • Hard Chrome Plated
  • Precision Ground

Race

  • Nylon/PTFE
  • Self-Lubricating
  • Self-Sealing

Body

  • Carbon Steel
  • Protective Coated for Corrosion Resistance

Exclusive Features

  • Metal to Metal Support for Heavy
  • Shock Loads
  • Increa
