#721EXFR161

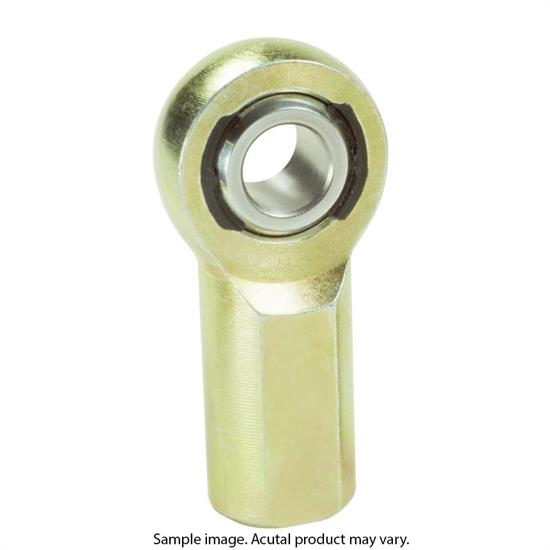

QA1 EXFR16-1 EX Series Rod End, Carbon Steel, 2-Piece, Each
- As an economical alternative to chromoly, QA1 is the exclusive provider of carbon steel loader slot rod ends
- QA1's EXF Carbon Steel Series female rod ends have increased cross-sectional thickness and are completely self-sealing and self-lubricating
- The Nylon/PTFE injection molded race won't pound out like other styles and keeps dirt and debris out for excellent performance
$71.99
/each
Factory Shipped
$72.42
Save $0.43
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, RH Female Thread Type, Steel, Gold
- As an economical alternative to chromoly, QA1 is the exclusive provider of carbon steel loader slot rod ends
- QA1's EXF Carbon Steel Series female rod ends have increased cross-sectional thickness and are completely self-sealing and self-lubricating
- The Nylon/PTFE injection molded race won't pound out like other styles and keeps dirt and debris out for excellent performance
- 52100 Bearing Steel
- Heat Treated, Hard Chrome Plated, Precision Ground
Key Specs
| Thread Type | RH Female |
| Rod End Attachment | Female Threads/Eyelet |
| Thread Pitch | 1"-14 |
| Material Type | Steel |
| Hole Diameter | 1" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyQA1 EXFR16-1 Details
QA1 EXFR16-1 Details
- As an economical alternative to chromoly, QA1 is the exclusive provider of carbon steel loader slot rod ends
- QA1's EXF Carbon Steel Series female rod ends have increased cross-sectional thickness and are completely self-sealing and self-lubricating
- The Nylon/PTFE injection molded race won't pound out like other styles and keeps dirt and debris out for excellent performance
- 52100 Bearing Steel
- Heat Treated, Hard Chrome Plated, Precision Ground
- Nylon/PTFE, Self-Lubricating, Self-Sealing, BODY, Carbon Steel (Alloy Steel - Mfr.'s Option)
- Protective Coated for Corrosion Resistance
- Metal to Metal Support for Heavy Shock Loads
- Increased Cross-Sectional Thickness for Greater Tensile Strength.
Guides & Documents
QA1 EXFR16-1 Specifications
QA1 EXFR16-1 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | EXFR16-1 |
| Brand | QA1 |
| Thread Type | RH Female |
| Rod End Attachment | Female Threads/Eyelet |
| Thread Pitch | 1"-14 |
| Material Type | Steel |
| Hole Diameter | 1" |
| Rod End Style | PTFE Lined |
| Rod End Construction | 2-piece |
| Grease Fitting | No |
| Finish | Zinc Plated |
| Color | Gold |
| Bushing Material | PTFE |
| Jam Nut Included | No |
| GENERAL | |
| Thread Length | 2.125" |
| Rod End Ball Diameter | 1.375" |
| Rod End Head Diameter | 2.75" |
| Rod End Head Width | 1.375" |
| Rod End Misalign Angle | 17 degrees |
| Heat Treated | Yes |
| Load Capacity | 40889 lbs. |
| GTIN Code | 806990052582 |
| Sold in Quantity | Each |
