Product Summary

Universal Fit, RH Female Thread Type, Steel, Natural

    Key Specs

    MFG. Part #EXFR10
    BrandQA1
    Material TypeSteel

    Need To Know

    Free Shipping on Orders Over $149

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

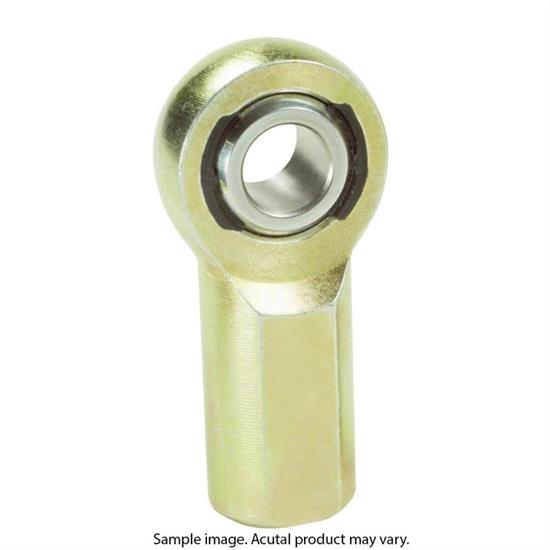

    As an economical alternative to chromoly, QA1 is the exclusive provider of carbon steel loader slot rod ends. Qa1's EXF Carbon Steel Series female rod ends have increased cross-sectional thickness and are completely self-sealing and self-lubricating. The Nylon/PTFE injection molded race won't pound out like other styles and keeps dirt and debris out for excellent performance.

    Ball

    • 52100 Bearing Steel
    • Heat Treated
    • Hard Chrome Plated
    • Precision Ground

    Race

    • Nylon/PTFE
    • Self-Lubricating
    • Self-Sealing

    Body

    • Carbon Steel
    • Protective Coated for Corrosion Resistance

    Exclusive Features

    • Metal to Metal Support for Heavy
    • Shock Loads
    • Increa

    Specifications

    KEY SPECS
    MFG. Part #EXFR10
    BrandQA1
    Material TypeSteel
    GENERAL
    Thread TypeRH Female
    Rod End AttachmentFemale Threads/Eyelet
    Thread Pitch5/8"-18
    Hole Diameter0.625"
    Rod End StyleNylon/PTFE Lined
    Rod End Construction3-piece
    Grease FittingNo
    FinishZinc Plated
    ColorNatural
    Thread Length1.500"
    Rod End Head Diameter1.5"
    Rod End Head Width0.75"
    Rod End Misalign Angle16 degrees
    Jam Nut IncludedNo
    Heat TreatedYes
    Load Capacity11226 lbs.
    GTIN Code806990008152
    Sold in QuantityEach
