#721EXFL4S

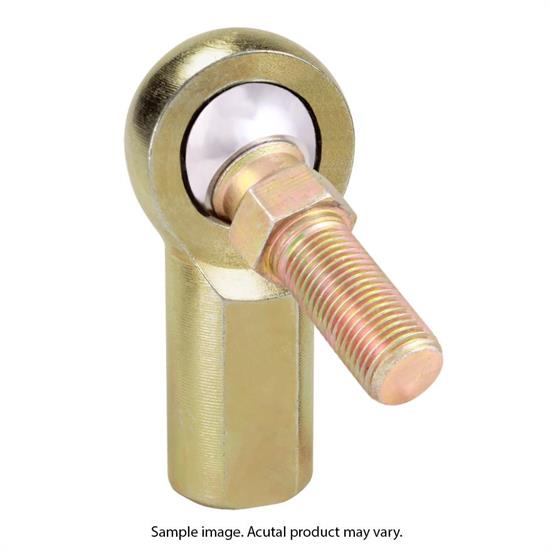

QA1 EXFL4S EX Series Carbon Steel Rod End, Female, LH 1/4 Bore, 1/4-28, Stud
Discontinued
This item is currently not available
Shop all QA1 EX Series Rod Ends
|
#721EXFL4S
Discontinued
This item is currently not available
Shop all QA1 EX Series Rod Ends
| Thread Type | LH Female |
| Rod End Attachment | Female Threads/Stud |
| Thread Pitch | 1/4"-28 |
| Material Type | Steel |
| Hole Diameter | 0.25" |
Need help?
855.313.9176Quick and Easy Returns
Return PolicyAs an economical alternative to chromoly, QA1 is the exclusive provider of carbon steel loader slot rod ends. Qa1's EXF Carbon Steel Series female rod ends have increased cross-sectional thickness and are completely self-sealing and self-lubricating. The Nylon/PTFE injection molded race won't pound out like other styles and keeps dirt and debris out for excellent performance.
Ball
Race
Body
Exclusive Features
Guides & Documents
CA WARNING:
Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov
| KEY SPECS | |
|---|---|
| MFG. Part # | EXFL4S |
| Brand | QA1 |
| Thread Type | LH Female |
| Rod End Attachment | Female Threads/Stud |
| Thread Pitch | 1/4"-28 |
| Material Type | Steel |
| Hole Diameter | 0.25" |
| Rod End Style | Nylon/PTFE Lined |
| Rod End Construction | 3-piece |
| Grease Fitting | No |
| Finish | Zinc Plated |
| Color | Natural |
| Bushing Material | PTFE |
| Jam Nut Included | No |
| GENERAL | |
| Thread Length | 0.750" |
| Rod End Head Diameter | 0.75" |
| Rod End Head Width | 0.375" |
| Rod End Misalign Angle | 16 degrees |
| Center Hole to End of Shank | 1.312" |
| Heat Treated | Yes |
| Load Capacity | 2539 lbs. |
| Notes | 1/4"-28 Pivot stud thread |
| GTIN Code | 806990041197 |
| Sold in Quantity | Each |
