QA1 DD501-12130 Pro Coil-Over Conversion System, 130 lbs. Spring Rate
QA1 DD501-12130 Pro Coil-Over Conversion System, 130 lbs. Spring Rate

QA1 DD501-12130 Pro Coil-Over Conversion System, 130 lbs. Spring Rate

Universal Fit, 130 lbs. Spring Rate, Rear Position, Twin Tube Shock Type, 5.00 Shock Stroke

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
QA1 DD501-12130 Pro Coil-Over Conversion System, 130 lbs. Spring Rate
QA1 DD501-12130 Pro Coil-Over Conversion System, 130 lbs. Spring Rate
Zoomed In Image
We estimate this item will ship on or before October 29th.
Part # 721DD50112130
Save 18%
$635.99
$783.80
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 10 business days for QA1 to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Spring Rate:
130 lbs.
Position:
Rear
Shock Type:
Twin Tube
Shock Adjustability:
Double Adjustable
Shock Body Material:
Aluminum
Shock Stroke:
5.00
Upper Shock Mount:
Eyelet
Lower Shock Mount:
Eyelet
Compressed Length:
11.625"
Extended Length:
16.875"
Compressed Length Range:
11.00" to 11.99"
Extended Length Range:
16.00" to 16.99"
Height Adjustable:
Yes
Number of Valving Selections:
324
Finish:
Clear Anodized
MFG. Part #:
DD501-12130
Bushing Material:
Steel
Body Diameter:
2"
Sold in Quantity:
Kit
Notes:
1/2 in. bolt hole, bearing.
Adjustable:
Yes
GTIN Code:
806990063137
Hardware Included:
Yes
Coilover Springs Included:
Yes
Crossmember Included:
No
Welding Required:
No
Gas Charged:
No
Color:
Natural
Mounting Bracket Included:
No
Spring Finish:
Chrome plated

Info

Upgrade your rear end with QA1's Pro-Rear System. Available in double adjustable, single adjustable and ride sensitive valving non-adjustable options, each adjustment has been carefully defined to provide the ideal force curve to maximize performance. With evenly spaced valving changes throughout the adjustment range, there are no jumps when adjusting between any two clicks. These Pro-Rear Systems are commonly used in drag racing, street performance and street rod applications.

  • Available in Simultaneous Compression and Rebound Single Adjustable (DS), Independent Compression & Rebound Double Adjustable (DD) or Ride Sensitive Non-Adjustable (ALN)
  • Coil-Over
  • Lightweight Aluminum Ride
  • Height Adjustable
  • Spring Mounting Hardware Included
  • 100% Dyno Tested and Serialized
  • Revalveable and Rebuildable by the QA1 Factory or QA1 Authorized Service Centers
  • Precision Machined Aluminum Piston with PTFE Piston Band
  • 5/8" Centerless Ground, Hard Chrome Plated, Solid Piston Rod
  • Three Step Sealing System
  • Made in the USA

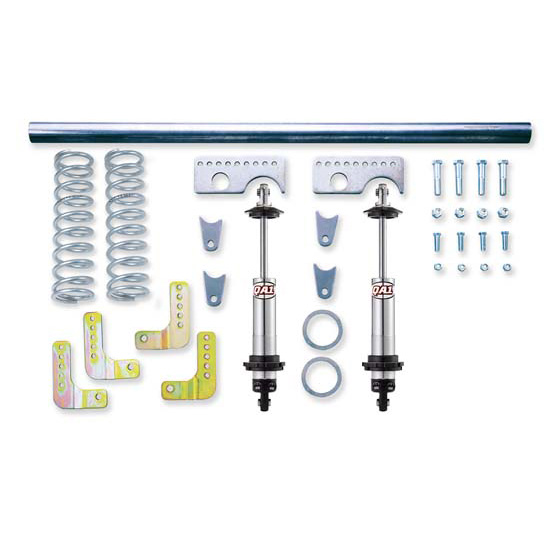

Kit includes: (2) Proma Star Shocks or Aluma Matic Shocks (2) Linear or Variable Rate Springs All Mounting Hardware

Notes

13.25"-14.50" recommended ride height
