#721CML8TS

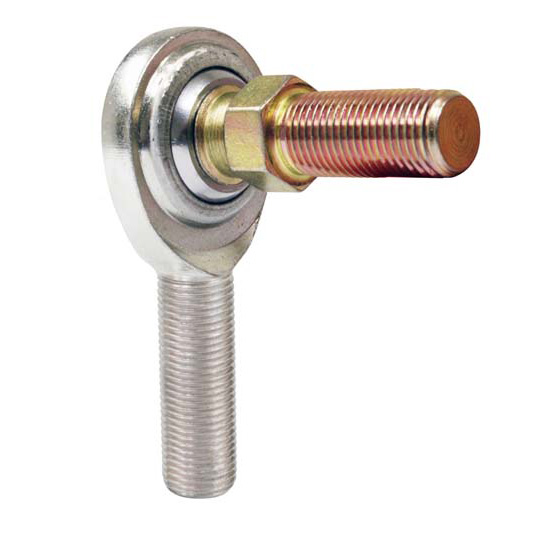

QA1 CML8TS C Series Rod End, Carbon Steel, 2-Piece, Each, Stud
$17.49
/each
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Key Specs
| Thread Type | LH Male |
| Rod End Attachment | Male Threads/Stud |
| Thread Pitch | 1/2"-20 |
| Material Type | Steel |
| Hole Diameter | 0.5" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyQA1 CML8TS Details
QA1 CML8TS Details
For a self-lubricating version of a traditional carbon steel two-piece male rod end, QA1 offers its CM-T Carbon Steel Series rod ends with a PTFE liner. These rod ends are protective coated for corrosion resistance and are available in inch dimensions with left and right hand threads.
Ball
- 52100 Bearing Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
Body
- Carbon Steel
- Protective Coated for Corrosion Resistance
- PTFE Lined
Guides & Documents
QA1 CML8TS Specifications
QA1 CML8TS Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | CML8TS |
| Brand | QA1 |
| Thread Type | LH Male |
| Rod End Attachment | Male Threads/Stud |
| Thread Pitch | 1/2"-20 |
| Material Type | Steel |
| Hole Diameter | 0.5" |
| Rod End Style | PTFE Lined |
| Rod End Construction | 2-piece |
| Grease Fitting | No |
| Finish | Zinc Plated |
| Color | Natural |
| Jam Nut Included | No |
| GENERAL | |
| Thread Length | 1.500" |
| Rod End Head Diameter | 1.312" |
| Rod End Head Width | 0.625" |
| Rod End Misalign Angle | 20 degrees |
| Heat Treated | Yes |
| Load Capacity | 10046 lbs. |
| Notes | 1/2"-20 Pivot stud thread |
| GTIN Code | 806990002457 |
| Sold in Quantity | Each |
