Product Summary

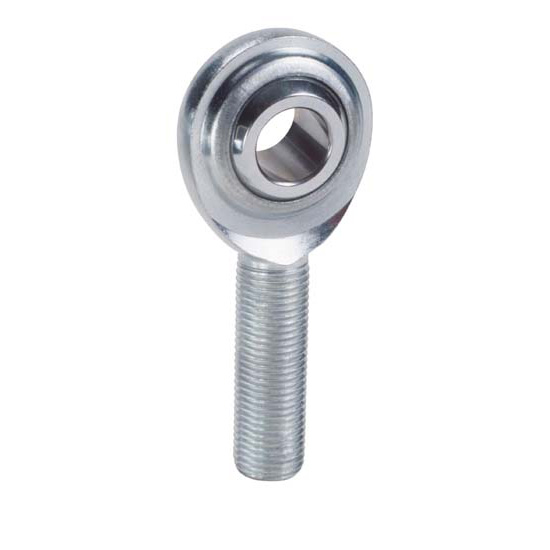

Universal Fit, LH Male Thread Type, Steel, Zinc Plated

    Key Specs

    Thread TypeLH Male
    Rod End AttachmentMale Threads/Eyelet
    Thread Pitch5/16"-24
    Material TypeSteel
    Hole Diameter0.313"

    Need To Know

    Free Shipping on Orders Over $149

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

    QA1 offers its CM Carbon Steel Series rod ends. These metal-to-metal rod ends are protective coated for corrosion resistance and are available in both metric and inch dimensions with left and right hand threads.

    Ball

    • 52100 Bearing Steel
    • Heat Treated
    • Hard Chrome Plated
    • Precision Ground

    Body

    • Carbon Steel
    • Protective Coated for Corrosion Resistance

    Notes: Load ratings apply only to rod ends without grease fittings. For ratings with grease fittings, please contact QA1. For sizes 2, 3, 3-4, 4, 4-5, 5 and 5-6, grease fittings are not available.

    Specifications

    KEY SPECS
    MFG. Part #CML5
    BrandQA1
    Thread TypeLH Male
    Rod End AttachmentMale Threads/Eyelet
    Thread Pitch5/16"-24
    Material TypeSteel
    Hole Diameter0.313"
    Rod End StyleMetal-to-metal
    Rod End Construction2-piece
    Grease FittingNo
    FinishZinc Plated
    ColorNatural
    Rod End Misalign Angle22 degrees
    Jam Nut IncludedNo
    GENERAL
    Thread Length1.250"
    Rod End Head Diameter0.875"
    Rod End Head Width0.437"
    Heat TreatedYes
    Load Capacity4517 lbs.
    GTIN Code806990001863
    Sold in QuantityEach
