QA1 BJGR3 Details

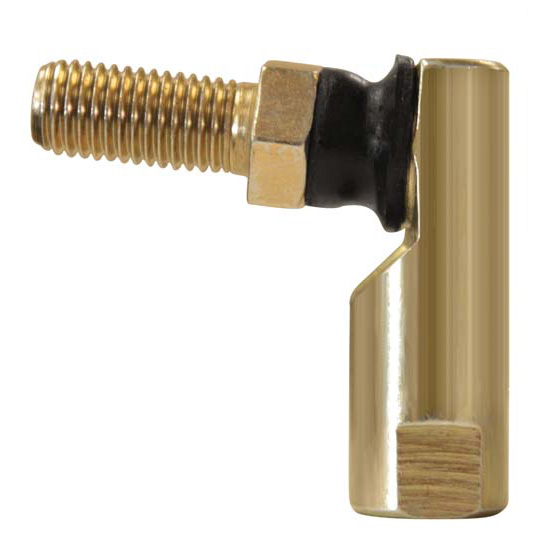

In the widely used staked ball joint assembly, the tube is swaged around the ball for a metal-to-metal ball joint that doesn't allow excessive play. QA1's staked ball joints include a rubber grommet or boot that acts as a highly effective seal against debris. Right and left hand threads are available for use in various OEM and aftermarket applications, including motorsports, lawn and garden, agricultural and construction equipment and many other applications. Commonly used in sway bar end links, throttle and shifter linkages and various other linkages.
Ball stud
- Carbon Steel
- Protective Coated for Corrosion Resistance
Body
- Carbon Steel
- Protective Coated for Corrosion Resistance
Spring
- Stainless Steel
Guides & Documents
QA1 BJGR3 Specifications
QA1 BJGR3 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | BJGR3 |
| Brand | QA1 |
| Material Type | Carbon Steel |
| GENERAL | |
| GTIN Code | 806990123701 |
| Thread Type | RH Female |
| Thread Pitch | 3/16" (10-32) |
| Sold in Quantity | Each |
| Notes | 3/16" (10-32) Pivot ball stud thread |
Ratings & Reviews
4.8
6 Reviews
Our product consistently impresses customers for its practicality, usability and quality. Confirmed as a reliable and effective solution for custom throttle linkage, the quality of manufacture surpasses competitor products with customers praising its robustness and non-slip features. The ball socket has been lauded for improving throttle position. Notably, it has been acclaimed for its excellent performance when used for carb linkage, far surpassing even original equipment manufacturer parts in terms of quality and cost-effectiveness.
Ratings & Reviews
4.8
6 Reviews
Our product consistently impresses customers for its practicality, usability and quality. Confirmed as a reliable and effective solution for custom throttle linkage, the quality of manufacture surpasses competitor products with customers praising its robustness and non-slip features. The ball socket has been lauded for improving throttle position. Notably, it has been acclaimed for its excellent performance when used for carb linkage, far surpassing even original equipment manufacturer parts in terms of quality and cost-effectiveness.
4.8
6 reviews
5
5
4
1
3
0
2
0
1
0
Filter by Ratings
I would purchase this product again.
5.0
5 years ago
None
DB FLA.
Verified
worked as designed.
Would Recommend
Great part for great price.
5.0
6 years ago
KG
CA
Verified
I needed to make a custom throttle linkage for a motor swap and needed a few of these connectors to do so. After looking on line at several different supplies I landed here because they had the best price. These little things are pricey, and this was the best price I found! Quality of manufacture seems good and they do what I need them to do.
Would Recommend
I would buy this again
4.0
7 years ago
Tater Salad
Colorado Springs
Verified
Works well
Would Recommend
Ball joint rating
5.0
7 years ago
Tx
Tennessee
Verified
This ball socket seems better made than others I looked at. no Slip like others whic effects throttle position. Tx
Would Recommend
Good quality,great price
5.0
8 years ago
Brierpath
Dallas,Tx
Verified
Fabricated new carb linkage for my four carb Corvair. These joints got rid of all the slop the stock bent wire links had. Get some 3/16 rod and a 10-32 die or just use 10-32 all thread and you can have nice tight controls again.
Would Recommend
Very good quality!
5.0
8 years ago
Hotrod k301
Chatsworth, ga
Verified
Much better than the kohler oem part and less expensive, about 60% less. Excellent for carb linkage. Glad i found speedway.
Would Recommend
Showing 6 of 6 reviews
