#721AMR6

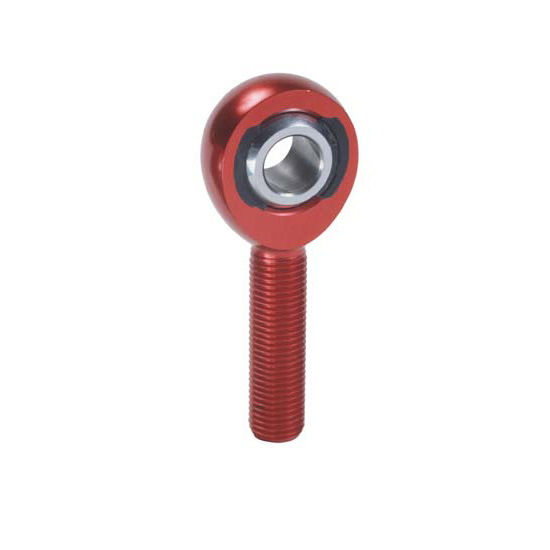

QA1 AMR6 A Series Rod End, Aluminum, 3/8 Bore, 3/8-24 RH, 2-Piece
- Rods are designed specifically for performance applications where weight is a concern
- Features a Nylon/PTFE injection molded race
- Made from 52100 Bearing Steel
$14.99
/each
In Stock
$16.02
Save $1.03
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, RH Male Thread Type, Aluminum, Anodized
- Rods are designed specifically for performance applications where weight is a concern
- Features a Nylon/PTFE injection molded race
- Made from 52100 Bearing Steel
- Self-sealing and self-lubricating race
- Hard Chrome Plated Finish
Key Specs
| Thread Type | RH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 3/8"-24 |
| Material Type | Aluminum |
| Hole Diameter | 0.375" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyQA1 AMR6 Details
QA1 AMR6 Details
QA1's AM Aluminum Series rod ends are male rod ends that are designed specifically for performance applications where weight is a concern. With a Nylon/PTFE injection molded race, these rod ends are completely self-sealing and self-lubricating, keeping dirt and debris out. Over 10% lighter than traditional three-piece aluminum rod ends, the AM Series rod ends are the most wear-resistant aluminum design available.
Ball
- 52100 Bearing Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
Race
- Nylon/PTFE
- Self-Lubricating
- Self-Sealing
Body
Aircraft Aluminum
Color Anodized Red as Standard
Exclusive Features
Metal to Metal Support for Heavy Shock Loads
Increased Cross-Sectional Thickness for Greater Tensile Strength
Guides & Documents
QA1 AMR6 Specifications
QA1 AMR6 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | AMR6 |
| Brand | QA1 |
| Thread Type | RH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 3/8"-24 |
| Material Type | Aluminum |
| Hole Diameter | 0.375" |
| Rod End Style | Nylon/PTFE Lined |
| Rod End Construction | 3-piece |
| Grease Fitting | No |
| Finish | Anodized |
| Color | Red |
| Bushing Material | PTFE |
| Jam Nut Included | No |
| GENERAL | |
| Thread Length | 1.250" |
| Rod End Head Diameter | 1" |
| Rod End Head Width | 0.5" |
| Rod End Misalign Angle | 12 degrees |
| Heat Treated | Yes |
| Load Capacity | 3457 lbs. |
| GTIN Code | 806990008299 |
| Sold in Quantity | Each |
