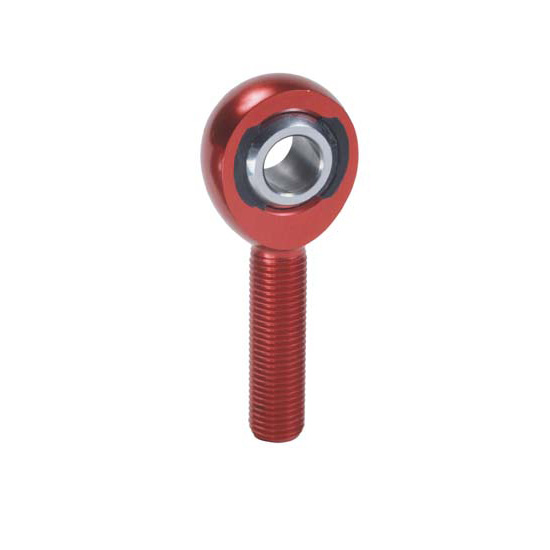

QA1 AMR4 A Series Rod End, Aluminum, 1/4-28 RH, 2-Piece, Each
QA1 AMR4 A Series Rod End, Aluminum, 1/4-28 RH, 2-Piece, Each
Universal Fit, RH Male Thread Type, Male Threads/Eyelet Rod End Attachment, Aluminum, Anodized
In Stock
Can Ship FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select Vehicle
QA1 AMR4 A Series Rod End, Aluminum, 1/4-28 RH, 2-Piece, Each
X
Part # 721AMR4
$6.99
each
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
Details
Thread Type:
RH Male
Rod End Attachment:
Male Threads/Eyelet
Thread Pitch:
1/4"-28
Material Type:
Aluminum
Hole Diameter:
0.250"
Rod End Style:
Nylon/PTFE Lined
Rod End Construction:
3-piece
Grease Fitting:
No
Finish:
Anodized
Color:
Red
Thread Length:
1.000"
Rod End Head Diameter:
0.75"
Rod End Head Width:
0.375"
Rod End Misalign Angle:
16 degrees
Jam Nut Included:
No
Heat Treated:
Yes
Load Capacity:
1433 lbs.
MFG. Part #:
AMR4
GTIN Code:
806990008268
Sold in Quantity:
Each
Info
QA1's AM Aluminum Series rod ends are male rod ends that are designed specifically for performance applications where weight is a concern. With a Nylon/PTFE injection molded race, these rod ends are completely self-sealing and self-lubricating, keeping dirt and debris out. Over 10% lighter than traditional three-piece aluminum rod ends, the AM Series rod ends are the most wear-resistant aluminum design available.
Ball
- 52100 Bearing Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
Race
- Nylon/PTFE
- Self-Lubricating
- Self-Sealing
Body
Aircraft Aluminum
Color Anodized Red as Standard
Exclusive Features
Metal to Metal Support for Heavy Shock Loads
Increased Cross-Sectional Thickness for Greater Tensile Strength
