Product Summary

Universal Fit, RH Male Thread Type, Aluminum, Anodized

    Key Specs

    MFG. Part #AMR10-12S
    BrandQA1
    Material TypeAluminum

    Need To Know

    Free Shipping on Orders Over $149

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

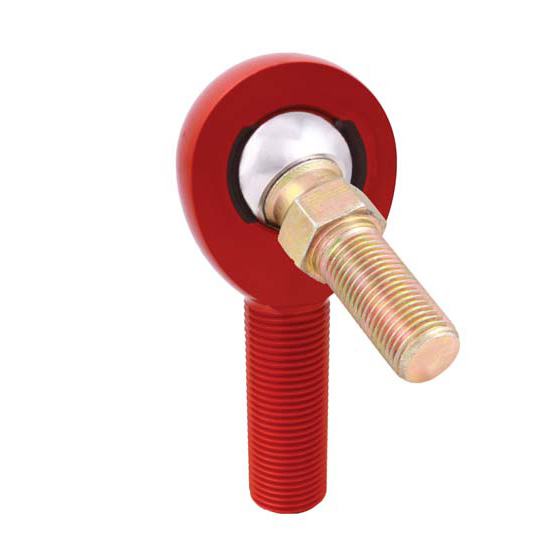

    • QA1 AMR10-12S A Series Rod End
    • Aluminum
    • 3/4-16 RH
    • 5/8"-18 RH Male thread stud
    • Each

    Specifications

    KEY SPECS
    MFG. Part #AMR10-12S
    BrandQA1
    Material TypeAluminum
    GENERAL
    Thread TypeRH Male
    Rod End AttachmentMale Threads/Stud
    Thread Pitch3/4"-16
    Hole Diameter0.625"
    Rod End StyleNylon/PTFE Lined
    Rod End Construction3-piece
    Grease FittingNo
    FinishAnodized
    ColorRed
    Thread Length1.750"
    Rod End Ball Diameter0.75"
    Rod End Head Diameter1.75"
    Rod End Head Width0.75"
    Rod End Misalign Angle13 degrees
    Center Hole to End of Shank2.875"
    Jam Nut IncludedNo
    Heat TreatedYes
    Load Capacity19300 lbs.
    Notes5/8"-18 Pivot stud thread
    GTIN Code806990040619
    Sold in QuantityEach
