QA1 AML7-8 Aluminum Heim Joint Rod Ends, 1/2-20 LH Male,7/16 Hole
$19.99
/each
Factory Shipped
$22.15
Save $2.16
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Key Specs
| Thread Type | LH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 1/2"-20 |
| Material Type | Aluminum |
| Hole Diameter | 0.438" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyQA1 AML7-8 Details
QA1 AML7-8 Details
Aluminum rod ends are a close tolerance, 3-piece, medium duty design. Hard anodized 7075-T6 aerospace quality aluminum body. Heat treated, 5210 precision ground ball, Kevlar race. Self lubricating Teflon liner seals out dirt and debris.
Applications: Designed for motorsports application where weight is critical. All of the strength & features of the Precision rod ends at half of the weight.
Assembly Tip: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.
Applications: Designed for motorsports application where weight is critical. All of the strength & features of the Precision rod ends at half of the weight.
Assembly Tip: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.
Ball
- 52100 Bearing Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
Race
- Nylon/PTFE
- Self-Lubricating
- Self-Sealing
Body
- Aircraft Aluminum
- Color Anodized Red as Standard
Exclusive Features
- Metal to Metal Support for Heavy Shock Loads
- Increased Cross-Sectional Thickness for Greater Tensile Strength
Ball
- 52100 Bearing Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
Race
- Nylon/PTFE
- Self-Lubricating
- Self-Sealing
Body
- Aircraft Aluminum
- Color Anodized Red as Standard
Exclusive Features
- Metal to Metal Support for Heavy Shock Loads
- Increased Cross-Sectional Thickness for Greater Tensile Strength
Charts

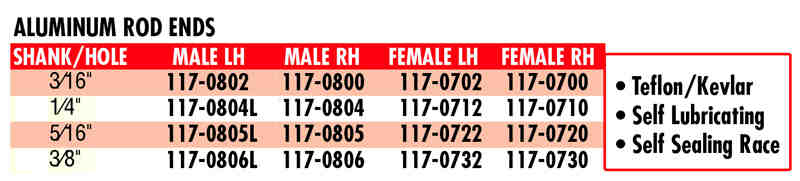

Aluminum Rod End Chart (GIF)
QA1 AML7-8 Specifications
QA1 AML7-8 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | AML7-8 |
| Brand | QA1 |
| Thread Type | LH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 1/2"-20 |
| Material Type | Aluminum |
| Hole Diameter | 0.438" |
| Rod End Style | Nylon/PTFE Lined |
| Rod End Construction | 3-piece |
| Grease Fitting | No |
| Finish | Anodized |
| Color | Red |
| Bushing Material | PTFE |
| Jam Nut Included | No |
| GENERAL | |
| Thread Length | 1.500" |
| Rod End Ball Diameter | 0.562" |
| Rod End Head Diameter | 1.312" |
| Rod End Head Width | 0.562" |
| Rod End Misalign Angle | 12 degrees |
| Overall Thickness | 0.562" |
| Center Hole to End of Shank | 2.438" |
| Heat Treated | Yes |
| Load Capacity | 11100 lbs. |
| GTIN Code | 806990008497 |
| Sold in Quantity | Each |
