Product Summary

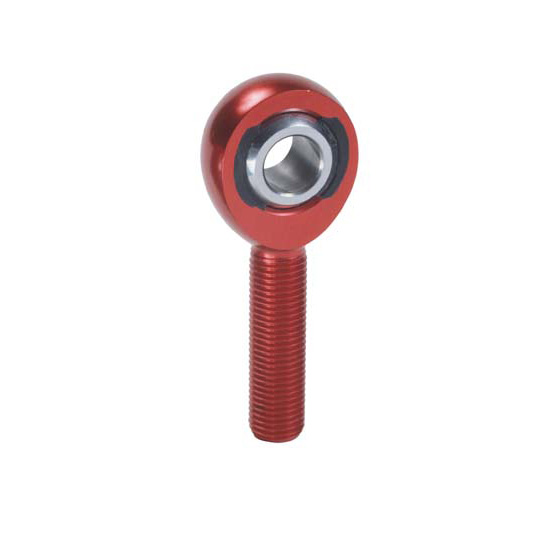

Universal Fit, LH Male Thread Type, Aluminum, Anodized

  • Ball is made from 52100 bearing steel and is heat treated
  • Race is designed to be self-healing and self-lubricating
  • Body is made from lightweight aircraft aluminum with a red anodized finish for added protection
  • Engineered to be over 10% lighter than traditional three-piece aluminum rod ends
  • Features metal to metal support for heavy shock loads

Key Specs

MFG. Part #AML6
BrandQA1
Material TypeAluminum

Need To Know

Free Shipping on Orders Over $149

Quick and Easy Returns

Details

QA1's AM Aluminum Series rod ends are male rod ends that are designed specifically for performance applications where weight is a concern. With a Nylon/PTFE injection molded race, these rod ends are completely self-sealing and self-lubricating, keeping dirt and debris out. Over 10% lighter than traditional three-piece aluminum rod ends, the AM Series rod ends are the most wear-resistant aluminum design available.

Ball

  • 52100 Bearing Steel
  • Heat Treated
  • Hard Chrome Plated
  • Precision Ground

Race

  • Nylon/PTFE
  • Self-Lubricating
  • Self-Sealing

Body

Aircraft Aluminum

Color Anodized Red as Standard

Exclusive Features

Metal to Metal Support for Heavy Shock Loads

Increased Cross-Sectional Thickness for Greater Tensile Strength

Specifications

KEY SPECS
MFG. Part #AML6
BrandQA1
Material TypeAluminum
GENERAL
Thread TypeLH Male
Rod End AttachmentMale Threads/Eyelet
Thread Pitch3/8"-24
Hole Diameter0.375"
Rod End StyleNylon/PTFE Lined
Rod End Construction3-piece
Grease FittingNo
FinishAnodized
ColorRed
Thread Length1.250"
Rod End Head Diameter1"
Rod End Head Width0.5"
Rod End Misalign Angle12 degrees
Jam Nut IncludedNo
Heat TreatedYes
Load Capacity3457 lbs.
GTIN Code806990008466
Sold in QuantityEach
