#721AML4

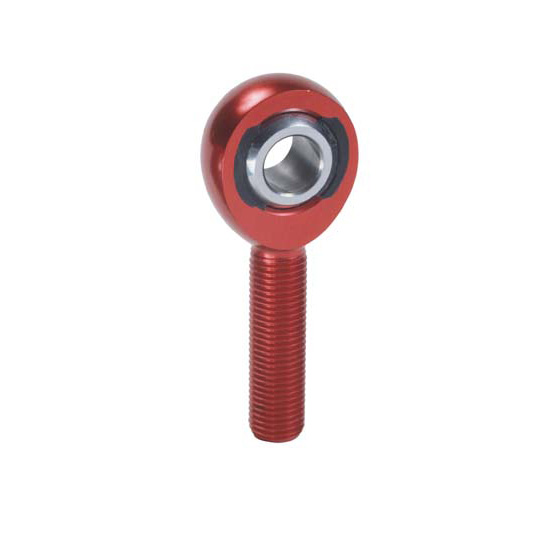

QA1 AML4 A Series Rod End, Aluminum, 1/4-28 LH, 1/4 Bore, 2-Piece
$10.99
each
In Stock
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, LH Male Thread Type, Aluminum, Anodized
See more details
Key Specs
| Thread Type | LH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 1/4"-28 |
| Material Type | Aluminum |
| Hole Diameter | 0.250" |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyQA1 AML4 Details
QA1 AML4 Details
QA1's AM Aluminum Series rod ends are male rod ends that are designed specifically for performance applications where weight is a concern. With a Nylon/PTFE injection molded race, these rod ends are completely self-sealing and self-lubricating, keeping dirt and debris out. Over 10% lighter than traditional three-piece aluminum rod ends, the AM Series rod ends are the most wear-resistant aluminum design available.
Ball
- 52100 Bearing Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
Race
- Nylon/PTFE
- Self-Lubricating
- Self-Sealing
Body
Aircraft Aluminum
Color Anodized Red as Standard
Exclusive Features
Metal to Metal Support for Heavy Shock Loads
Increased Cross-Sectional Thickness for Greater Tensile Strength
QA1 AML4 Specifications
QA1 AML4 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | AML4 |
| Brand | QA1 |
| Thread Type | LH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 1/4"-28 |
| Material Type | Aluminum |
| Hole Diameter | 0.250" |
| Rod End Style | Nylon/PTFE Lined |
| Rod End Construction | 3-piece |
| Grease Fitting | No |
| Finish | Anodized |
| Color | Red |
| Rod End Misalign Angle | 16 degrees |
| Jam Nut Included | No |
| GENERAL | |
| Thread Length | 1.000" |
| Rod End Head Diameter | 0.75" |
| Rod End Head Width | 0.375" |
| Heat Treated | Yes |
| Load Capacity | 1433 lbs. |
| GTIN Code | 806990008435 |
| Sold in Quantity | Each |
