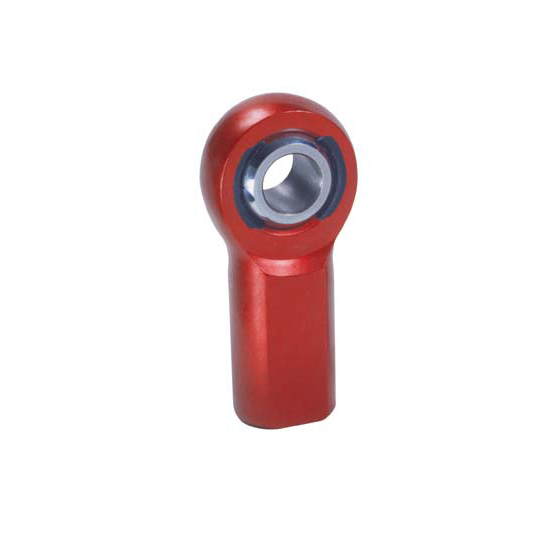

QA1 AFR5 A Series Rod End, Aluminum, 5/16-24 RH, 5/16 in. Bore, Each

Name: QA1 AFR5 A Series Rod End, Aluminum, 5/16-24 RH, 5/16 in. Bore, Each
Brand: QA1
SKU: 721AFR5
Price: 9.99 USD
Availability: InStock
Rating: 5 (3 reviews)

3 Reviews

Ask a Question

$9.99

each

In Stock

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, RH Female Thread Type, Aluminum, Red

See more details

Key Specs

Thread Type	RH Female
Rod End Attachment	Female Threads/Eyelet
Thread Pitch	5/16"-24
Material Type	Aluminum
Hole Diameter	0.313"

See more specs

Need To Know

Free Shipping on Orders Over $149

Shipping Policies & FAQs

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

QA1 AFR5 Details

QA1's AF Aluminum Series rod ends are female Endura rod ends that are designed specifically for performance applications where weight is a concern. With a Nylon/PTFE injection molded race, these rod ends are completely self-sealing and self-lubricating, keeping dirt and debris out. Over 10% lighter than traditional three-piece aluminum rod ends, the AF Series rod ends are the most wear-resistant aluminum design available.

Ball

52100 Bearing Steel
Heat Treated
Hard Chrome Plated
Precision Ground

Race

Nylon/PTFE
Self-Lubricating
Self-Sealing

Body

Aircraft Aluminum
Color Anodized Red as Standard

Exclusive Features

Metal to Metal Support for Heavy Shock Loads
Increased Cross-Sectional Thickness for Greater Tensile Strength

CA Prop 65

QA1 AFR5 Specifications

KEY SPECS
MFG. Part #	AFR5
Brand	QA1
Thread Type	RH Female
Rod End Attachment	Female Threads/Eyelet
Thread Pitch	5/16"-24
Material Type	Aluminum
Hole Diameter	0.313"
Rod End Style	Nylon/PTFE Lined
Rod End Construction	3-piece
Grease Fitting	No
Finish	Anodized
Color	Red
Rod End Misalign Angle	14 degrees
Jam Nut Included	No

GENERAL
Thread Length	0.750"
Rod End Head Diameter	0.875"
Rod End Head Width	0.437"
Heat Treated	Yes
Load Capacity	2780 lbs.
GTIN Code	806990008589
Sold in Quantity	Each
