#72182726

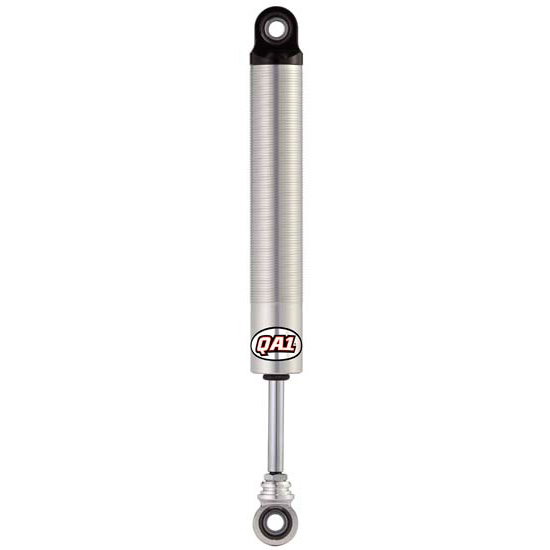

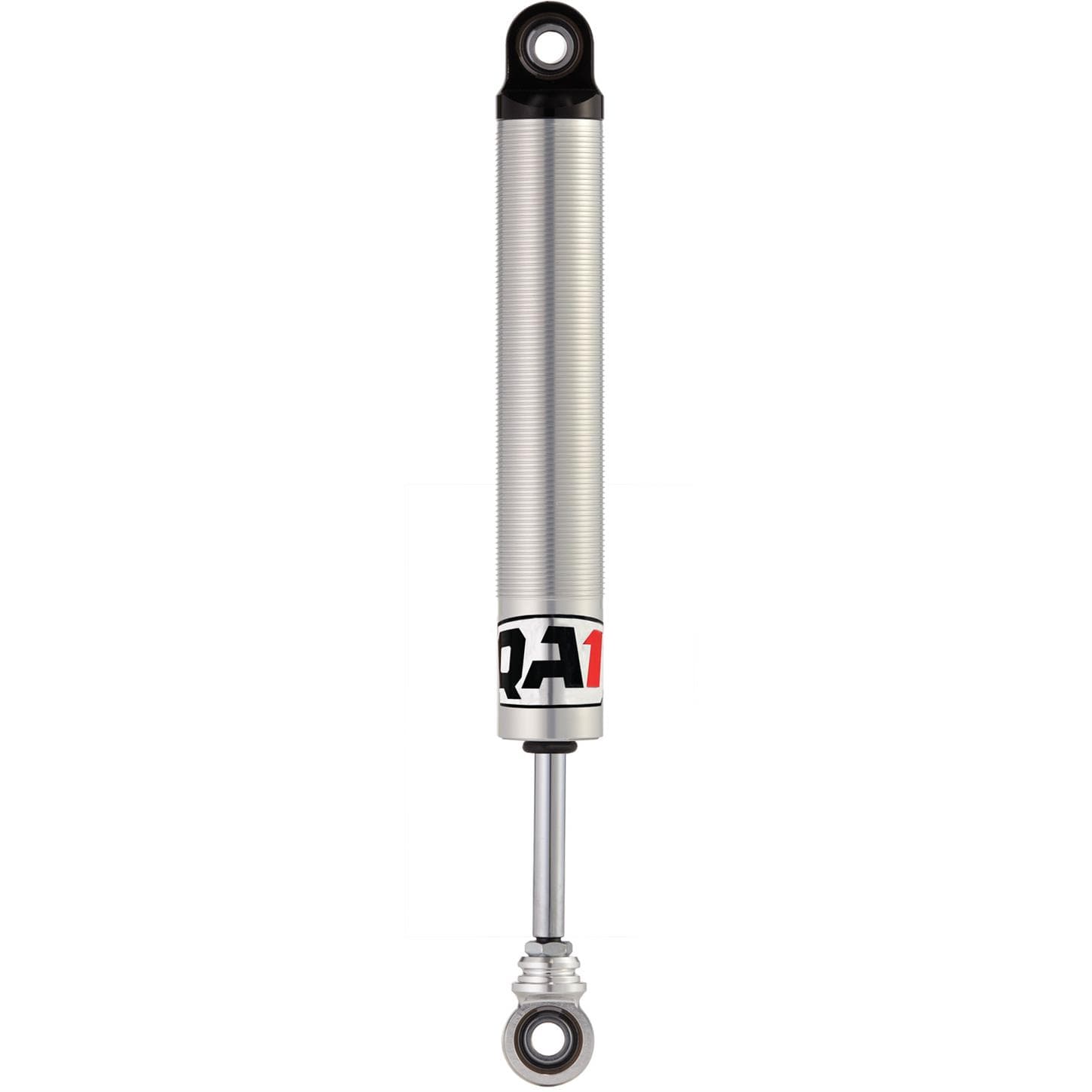

QA1 8272-6 Alum. Small Body Shock, 7 in. Stroke, 2/6, Comp/Reb
Discontinued
This item is currently not available
Shop all QA1 82 Series Shocks
Key Specs
| Shock Type | Twin Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Aluminum |
| Body Diameter | 1.625" |
| Shock Body Type | Threaded |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyQA1 8272-6 Details
QA1 8272-6 Details
The 82 Series shock works great in various lightweight racing classes. The threaded body makes coil-over adjustments a breeze and its two-piece design allows the shock to be repaired inexpensively. This shock is a popular choice for dwarf cars, micros, mini sprints, lightweight road race and recreational vehicles. It works best on average to dry-slick dirt or asphalt tracks.
- Small body
- Racer revalveable and rebuildable
- Non-fading
- Deflective disc valving
- Damping curve allows for complete control of suspension at low shaft speeds without creating extreme forces at high shaft velocities
- Twin tube design allows the outer tube to be dented without binding the shock
- 1-5/8" O.D. Lightweight aluminum body
- Can be run in any orientation with no change in rate
- Replaceable 1/2" I.D. bearings
- 100% Dyno tested and serialized
- Made in the USA
Guides & Documents
QA1 8272-6 Specifications
QA1 8272-6 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 8272-6 |
| Brand | QA1 |
| Shock Type | Twin Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Aluminum |
| Body Diameter | 1.625" |
| Shock Body Type | Threaded |
| Shock Body Size | Small Body |
| Shock Stroke Range | 7.00" to 7.99" |
| Compression Valving | 2 |
| Rebound Valving | 6 |
| Upper Shock Mount | Spherical Rod End |
| Lower Shock Mount | Spherical Rod End |
| Extended Length Range | 19.00" to 19.99" |
| Extended Length | 19.75" |
| Compressed Length Range | 12.00" to 12.99" |
| Compressed Length | 12.38" |
| Finish | Natural |
| Gas Charged | No |
| GENERAL | |
| Shock Stroke | 7.00 |
| Schrader Valve | No |
| Coil-Over Compatible | Yes |
| External Canister | No |
| Sold in Quantity | Each |
| Hardware Included | No |
| GTIN Code | 806990031891 |
| Color | Natural |
| Coilover Springs Included | No |
