#72126A74M

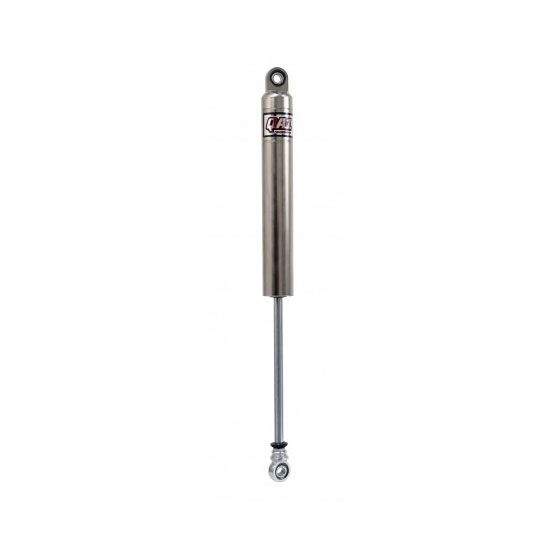

QA1 26A74M 26A Series Monotube 7 Inch Shock, Comp 4/Reb 4
$189.95
each
On Backorder
This part is Backordered. We currently do not have an estimate when this item will ship.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Modified, Stock Car, Mono Tube Shock Type, Zinc Plated
See more details
Key Specs
| Shock Type | Mono Tube |
| Shock Body Material | Steel |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
| Shock Stroke Range | 7.00" to 7.99" |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyQA1 26A74M Details
QA1 26A74M Details
These QA1 monotube shocks are IMCA approved and feature the latest in design technology.
- 7" stroke: 13" compressed length, 20" extended length
- Nickel plated body encapsulates the base metal and completely seals out the elements
- Plating provides excellent corrosion resistance, superior hardness, consistency and lubricity
- Racer revalveable and rebuildable
- One-piece steel body design
- Deflective disk valving
- Can be run upside down
- Replaceable 1/2" I.D. bearing ends
QA1 26A74M Specifications
QA1 26A74M Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 26A74M |
| Brand | QA1 |
| Shock Type | Mono Tube |
| Shock Body Material | Steel |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
| Shock Stroke Range | 7.00" to 7.99" |
| Compression Valving | 4 |
| Rebound Valving | 4 |
| Upper Shock Mount | Spherical Rod End |
| Lower Shock Mount | Spherical Rod End |
| Extended Length Range | 20.00" to 20.99" |
| Extended Length | 20.7" |
| Compressed Length Range | 13.00" to 13.99" |
| Compressed Length | 13.7" |
| Finish | Zinc Plated |
| Coil-Over Compatible | Yes |
| Gas Charged | Yes |
| GENERAL | |
| Speedway Motors Catalog Part # | 721-26A74M |
| Shock Stroke | 7.00 |
| Schrader Valve | No |
| Body Diameter | 2.00" |
| Valve Positions | 4 LINEAR compression - 4 LINEAR rebound |
| Bushing Material | Steel |
| Sold in Quantity | Each |
| Notes | IMCA legal |
| Shock Eyelet Width | .625" |
| Bolt Hole Circle | .500" |
| Hardware Included | No |
| GTIN Code | 806990058539 |
