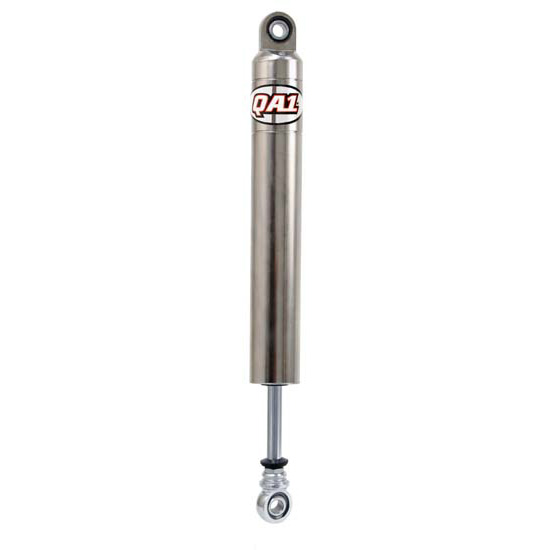

QA1 2674M 26 Series Steel Monotube Shock, 4/4 Comp/Reb
- The 26 Series shock is a one piece monotube shock that is well suited for a variety of track conditions or as a traction shock in various applications.
- Constructed with a zinc plated body for corrosion resistance, this shock is a popular choice for modifieds, late models, super stocks and various other classes.
$219.95
/each
Factory Shipped
$243.68
Save $23.73
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, Mono Tube Shock Type, 4 Rebound Valving
- The 26 Series shock is a one piece monotube shock that is well suited for a variety of track conditions or as a traction shock in various applications.
- Constructed with a zinc plated body for corrosion resistance, this shock is a popular choice for modifieds, late models, super stocks and various other classes.
- Works best on rough tracks and as an easy-up shock on many dirt cars, and on bumpy asphalt tracks in all banking types.
- Made with a 2'' O.D. zinc plated steel monotube body and available with hyperscrew, sealed Hyperscrew (IMCA Legal) or Schrader valve configurations, the 26 Series shocks use deflective disc valving with either linear, digressive or linear/digressive valving.
- The hyperscrew equipped shocks have a threaded round port near the bearing end of the shock body.
Key Specs
| Shock Type | Mono Tube |
| Shock Body Material | Steel |
| Body Diameter | 2" |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyQA1 2674M Details
QA1 2674M Details
- The 26 Series shock is a one piece monotube shock that is well suited for a variety of track conditions or as a traction shock in various applications.
- Constructed with a zinc plated body for corrosion resistance, this shock is a popular choice for modifieds, late models, super stocks and various other classes.
- Works best on rough tracks and as an easy-up shock on many dirt cars, and on bumpy asphalt tracks in all banking types.
- Made with a 2'' O.D. zinc plated steel monotube body and available with hyperscrew, sealed Hyperscrew (IMCA Legal) or Schrader valve configurations, the 26 Series shocks use deflective disc valving with either linear, digressive or linear/digressive valving.
- The hyperscrew equipped shocks have a threaded round port near the bearing end of the shock body.
- This hole is then sealed with a small screw that has an O-ring built into it, sealing the nitrogen gas pressure inside the shock.
- The gas pressure of the sealed hyperscrew configurations is only adjustable by QA1 and QA1 Authorized Rebuilders per sanctioning body, like IMCA, and track rules.
- With a Schrader valve you can easily adjust your gas pressure.
- Much like adding air to your car tires, the Schrader valve allows you to make ''on the fly'' gas pressure adjustments between heat races and features to adjust for varying track conditions.
- The 46 MM piston allows for maximum car control at all shaft velocities.
- They are racer rebuildable and revalveable for unparalleled repeatability.
- Made in the USA and 100% dyno tested and serialized.
Guides & Documents
QA1 2674M Specifications
QA1 2674M Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 2674M |
| Brand | QA1 |
| Shock Type | Mono Tube |
| Shock Body Material | Steel |
| Body Diameter | 2" |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
| Compression Valving | 4 |
| Rebound Valving | 4 |
| Upper Shock Mount | Spherical Rod End |
| Lower Shock Mount | Spherical Rod End |
| Extended Length Range | 20.00" to 20.99" |
| Extended Length | 20.57" |
| Compressed Length Range | 13.00" to 13.99" |
| Compressed Length | 13.1" |
| Finish | Zinc Plated |
| Gas Charged | Yes |
| GENERAL | |
| Shock Stroke | 7.00 |
| Schrader Valve | No |
| Sold in Quantity | Each |
| Notes | A linear seven inch stroke shock with a hyperscrew and a valving of 4-4M. |
| GTIN Code | 806990056382 |
| Boot Included | No |
| Lower Mount | Eyelet |
| Adjustable Valving | No |
| Upper Mount | Eyelet |
