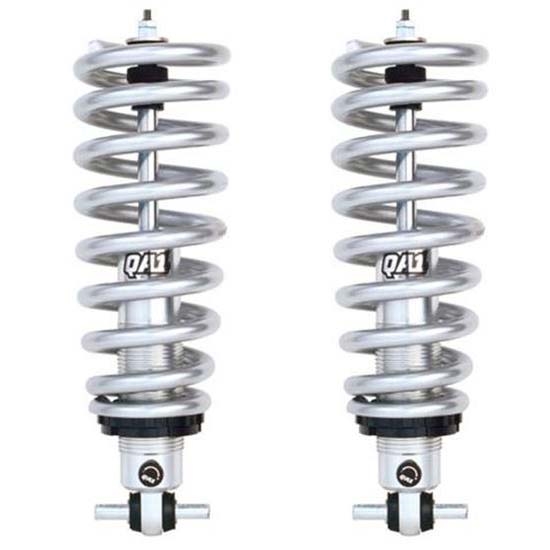

QA1 1974-77 GM A/G/X Front Coilovers
74-77 Chevy Monte Carlo, Aluminum Shock Body Material, Stud Upper Shock Mount, Powder Coated
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Build Your KitYou're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Dont you wish you had adjustable coil-overs on the front of your classic car to vary the ride height and road feel? This QA1 Pro Coil Adjustable Front Coil-Over Conversion Kit will do just that for you. You get two adjustable coilover shock assemblies that have a single knob with 24 valving options and two coil springs.
- Easy Bolt-In Installation
- Minimal modifications to be made
- Remove the existing shocks and springs and the QA1 Pro Coil System bolts right back in.
- Specialty Designed Conical Springs
- Springs designed so that the lower end sits on the coil-over shock and the upper end sets in the original spring bucket in the frame
- Allows for a longer, lighter spring for more stored energy, offering increased weight transfer
- Greater durability by locating the spring pressure in the frame and not on a single stud
- Ride Height Adjustable
- Threaded aluminum body allows easy ride height adjustment
- QA1 Pro Coil shocks are revalveable and rebuildable by QA1 Authorized Service Centers
Choose 350 lb., 450lb. or 550 lb. rate springs.
Item Details1970-88 Monte Carlo, 1974-77 GTO/Ventura, 1975-79 Nova
- 1970-72 Monte Carlo
- 1973-77 GM A-Body (Chevelle, Grand Am, Cutlass)
- 1974-77 GTO/Ventura
- 1978-81 GM A-Body (Monte Carlo, Malibu, El Camino, Grand Prix, Cutlass)
- 1982-88 GM G-Body (Monte Carlo, Regal, Cutlass, Grand Prix)
Spring Rate Front End Weight
- 350 1700-1900 lb.
- 450 1900-2100 lb.
- 550 2100-2300 lb.
Most Small Block Chevy V8s have a total front end weight of 1700-1950 lbs. (Other small blocks add 75 lbs.) Most Big Blocks have a total front end weight of 1951-2200 lbs. If equipped with Air Conditioning, add 75 lbs.* Approximate figures, not exact.
- Comp. Length: 9"
- Ext. Length: 12.75"
- Upper Mount: Stud
- Lower Mount: T-Bar
- Spring Free Length: 10"
- Spring Upper I.D.: 4.10"
- Spring Upper O.D.: 5.50"
- Spring Lower I.D.: 2.50"
- Spring Lower O.D.: 4.00"
- Spring Style: Flat
- Spring Finish: Powder Coated, Chrome Appearing
What's In The Kit
QA1 Adjustable Pro-Coil ShockPart # 7214671Qty x 2
QA1 GMP Coil Over SpringPart # 72110423Qty x 2
