Product Summary

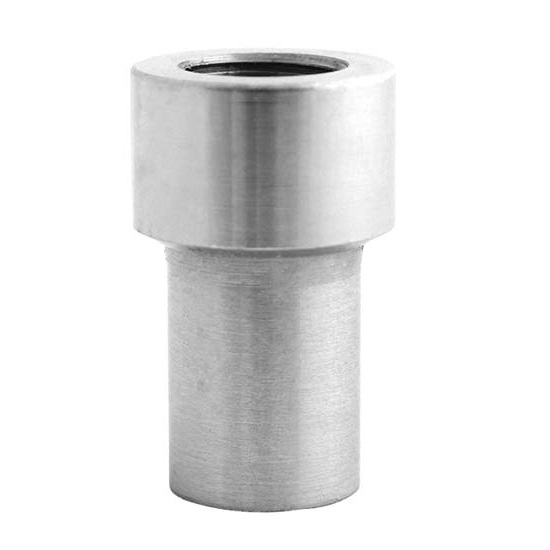

Universal Fit, 1" Diameter Big End, 1" Tube O.D., Steel

    Key Specs

    MFG. Part #1844122
    BrandQA1

    Need To Know

    Free Shipping on Orders Over $149

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

    QA1's weld-in tube adapters are CNC machined to precise tolerances from special easily weldable chromoly steel. Available in a large assortment of sizes to fit most popular tubing, they are an effective way to adapt rod ends or QA1's Rebuildable Bearings to a variety of applications. Available in both right and left hand thread styles, with the left hand units marked with a machined groove for easy identification. Also available in select sizes with integrated hex; weld-on hexes sold separately.

    • 1" tube diameter
    • 5/8-18" RH thread pitch
    • 0.12" thickness
    • Steel construction
    • Natural finish
    • Sold each

    Specifications

    KEY SPECS
    MFG. Part #1844122
    BrandQA1
    GENERAL
    Diameter Big End1"
    Diameter Small End0.735"
    Tube O.D.1"
    Thread Pitch5/8"-18
    Thread TypeRH Female
    Material TypeSteel
    FinishNatural
    Sold in QuantityEach
    GTIN Code806990053466
    StyleSmooth
    Overall Thickness0.12"
    Tube I.D.0.75"
