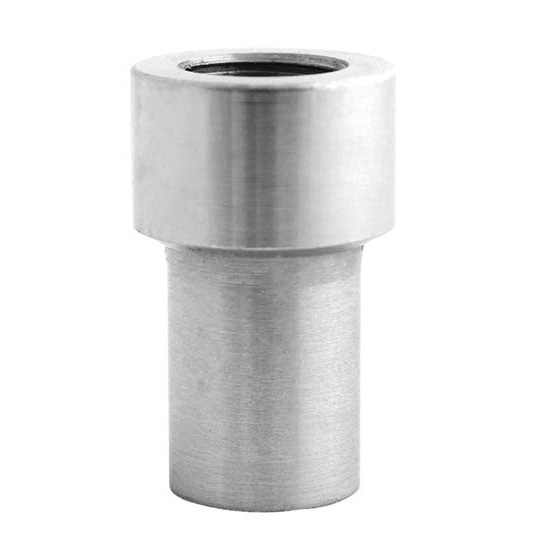

QA1 1844-108 Chassis Tube Ends Adapter, Steel, 5/8 in., 3/8-24 RH
$7.19
/each
Factory Shipped
$8.14
Save $0.95
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyQA1 1844108 Details
QA1 1844108 Details
QA1's weld-in tube adapters are CNC machined to precise tolerances from special easily weldable chromoly steel. Available in a large assortment of sizes to fit most popular tubing, they are an effective way to adapt rod ends or QA1's Rebuildable Bearings to a variety of applications. Available in both right and left hand thread styles, with the left hand units marked with a machined groove for easy identification. Also available in select sizes with integrated hex; weld-on hexes sold separately.
Guides & Documents
QA1 1844108 Specifications
QA1 1844108 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 1844108 |
| Brand | QA1 |
| GENERAL | |
| Overall Length | 1.25" |
| Diameter Big End | 0.625" |
| Diameter Small End | 0.484" |
| Tube O.D. | 0.625" |
| Under Head Length | .75" |
| Thread Pitch | 3/8"-24 |
| Thread Type | RH Female |
| Thread Length | 1.25" |
| Material Type | Steel |
| Finish | Natural |
| Sold in Quantity | Each |
| GTIN Code | 806990053329 |
| Style | Smooth |
| Overall Thickness | 0.058" |
