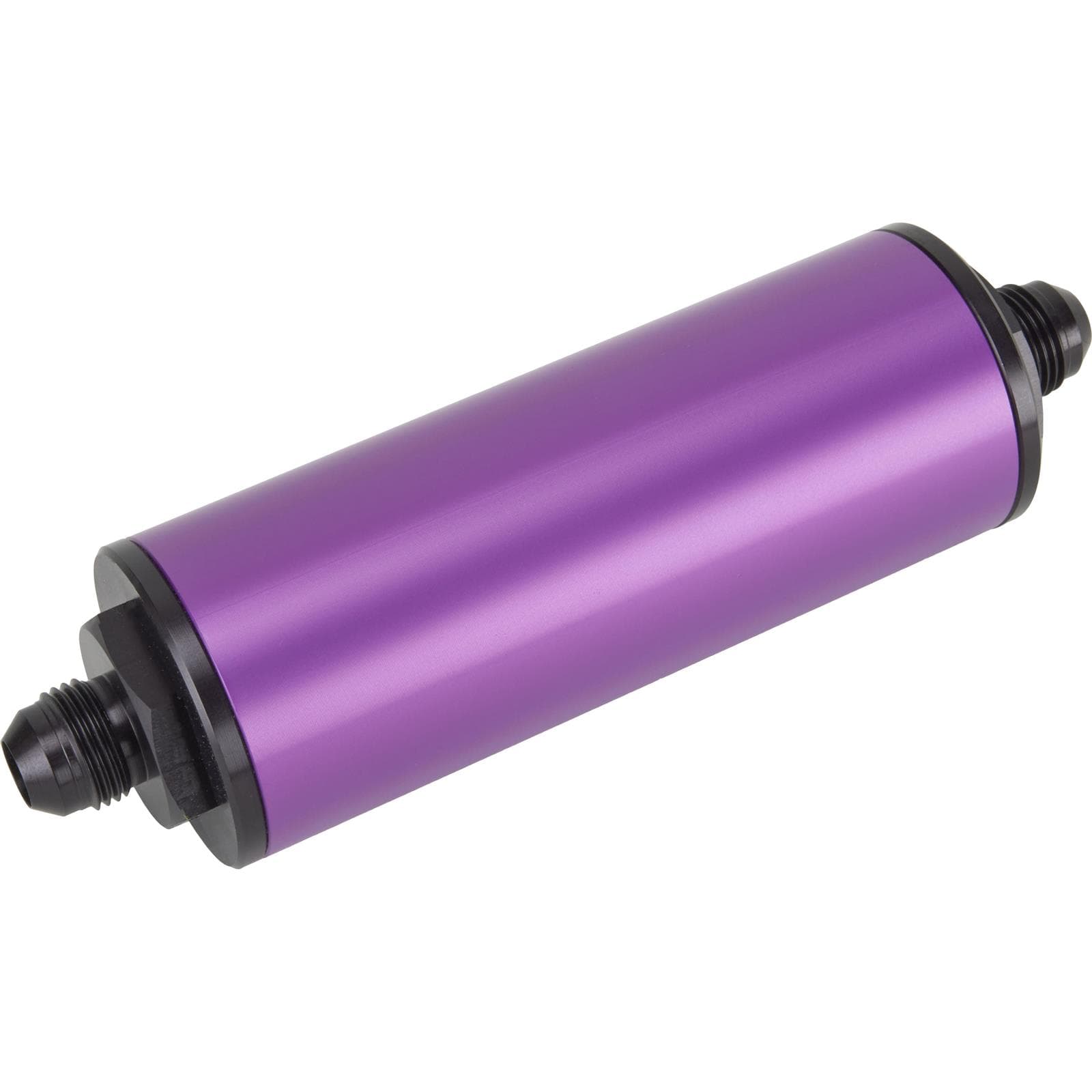

Purple 6 Inch Aluminum High Flow Fuel Filter, Stainless Element

#91011743

Purple 6 Inch Aluminum High Flow Fuel Filter, Stainless Element

Name: Purple 6 Inch Aluminum High Flow Fuel Filter, Stainless Element
Brand: Speedway Motors
SKU: 91011743
Price: 98.99 USD
Availability: InStock
Rating: 4.5 (6 reviews)

6 Reviews

8 Questions

Compact 6" size offers weight and space savings over full size filter
Stainless steel high-flow element is compatible with gasoline and methanol fuels
Filter element can be cleaned and reused saving you money

$98.99

/kit

In Stock

$100.96

Save $1.97

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Gasoline | Alcohol Fuel Type, Anodized

Compact 6" size offers weight and space savings over full size filter
Stainless steel high-flow element is compatible with gasoline and methanol fuels
Filter element can be cleaned and reused saving you money
Purple anodized aluminum housing with black end caps provide a durable finish
Choose from AN 6, AN 8, AN 10 or AN 12 inlet and outlet

Comes as a Kit

View Kit Components

See more details

Key Specs

Filter Material	Stainless Steel Mesh
Microns	140
Fuel Filter Style	Inline
Housing Material	Aluminum
Housing Finish	Anodized

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Installation Details

Installation Tips

Compatible Fuel Filter Mounts

Service Items

NOTE: When replacing the fuel filter element, the spring must be installed on the solid/flat end of the filter, opposite the open end of the filter. Whichever end cap of the filter housing the spring is seated against is the “inlet” for the filter, so be aware of this if you have different sized inlet/outlet AN end caps installed.

Have a Question?

Call one of our U.S.-based customer service professionals.

Tech Support - Opens at NaNpm (UTC)

Speedway Motors 91011743 Details

High flow filter perfect for any carbureted or mechanical injection fuel system
Not for post-fuel pump use on EFI fuel systems (can be used for pre-pump filter)
Capable of handling 900-1,000 NA horsepower engine demand
Stainless steel 140 micron filter element compatible with gasoline and methanol fuels
2-inch diameter body fits most popular inline fuel filter mounting clamps
Overall length with both AN fitting end caps installed is 7-1/8 inches long
Available with AN 6, AN 8, AN 10, or AN 12 inlet/outlet fittings

Compact Filter Mounts Almost Anywhere, Providing Easy Filter Inspection and Servicing

Ensuring your race car or performance street vehicle has plenty of clean fuel is critical to achieving top performance from your engine. The last thing you want is to be at the back of the pack or on the side of the road due to lack of fuel pressure or volume from a race car fuel filter element that is completely blocked by debris. Being able to inspect your cleanable fuel filter (or replace it) quickly and easily is paramount to being ready for the next race or your next road trip.

Our purple anodized aluminum 6-inch inline fuel filter is the perfect solution for your race car or high-performance street machine running a carburetor or mechanical fuel injection (though this filter can be used as a pre-pump filter in aftermarket EFI fuel systems as well). With a main body of 6-inches that houses a stainless steel 140 micron filter that is 3-3/4-inches long, and your choice of inlet and outlet fittings with AN thread, this inline fuel filter achieves an overall length of just 7-1/8 inches that allows it to be fitted almost anywhere on your race car’s frame or roll cage.

Compatible With Gasoline and Methanol Fuels

The in line fuel filter media is suitable for standard gasoline and methanol fuels. The 2-inch outside diameter makes this race car fuel filter compatible with several popular mounting solutions (see full list in our installation details). If purple isn’t your thing, we do offer a 6-inch version with a black body. A 10-inch filter model, available in both purple and black finishes is also an option.

Speedway Motors 91011743 Specifications

KEY SPECS
MFG. Part #	91011743
Brand	Speedway Motors
Filter Material	Stainless Steel Mesh
Microns	140
Fuel Filter Style	Inline
Housing Material	Aluminum
Housing Finish	Anodized

GENERAL
Fuel Type	Gasoline \| Alcohol
Filter Element Included	Yes
Clamps Included	No
Tube O.D.	2"
Overall Length	7.13"
Overall Diameter	2.00"
Material Type	Aluminum
Finish	Anodized
Color	Purple
Outside Diameter	2"
Tube Length	6"
Bracket Included	No
Element Length	3.75"
Filter Size	1.60" OD
Mounting Bracket Included	No
Smallest Particle Filtered	45 micron
Sold in Quantity	Each

Ratings & Reviews

4.5

6 Reviews

Overall Assessment

Customers commend the product for its top-notch quality, practicality, and superior performance, specifically in the contexts of fuel cells and racing. Buyers pointed out the excellent finish, solid fit, and the inclusion of AN fittings as standout features. Its usability and functionality were praised, with one customer using the product to filter fuel for a drag car, and another planning to use it on a bracket racer switched to E85. Some hadn't used it yet but appreciated its aesthetic appeal and good value for money. Notably, the product was favored over competitors due to the great price point and high quality.

Write A Review

4.5

6 reviews

Filter by Ratings

Sort Reviews

yes

4.0

6 years ago

Wang

Lyman,Ne

Verified

On race car coming off the fuel cell.

Would Recommend

Good filter

5.0

7 years ago

T bone

Holts summit missouri

Verified

Nice an fittings

Would Recommend

I would buy this filter again.

5.0

8 years ago

millrat

valparaiso in.

Verified

This is going on my bracket racer that I'm switching over to E85. I have not installed it yet because car is in paint jail. Everything on this filter. finish, threads and fit look top notch.

Would Recommend

Good looking piece..

5.0

14 years ago

Dave

Kempner, TX.

Verified

Need this to filter the fuel for my injected drag car. Had planned to install it on the car but because of room and not running excess hoses decided to add it to the pump used to refill the fuel tank instead. Works great.

Would Recommend

Nicely made part

5.0

15 years ago

road race nut

Matthews, NC

Verified

Looks great but not in use yet

Would Recommend

Good price , nice part

3.0

16 years ago

Rbsawman

Fortworth Texas

Great price , good looks had to remove anodizing from the threads so it would go together

Would Recommend

Showing 6 of 6 reviews

Questions & Answers

8 Questions • 8 Answers

Sort Questions

does it matter what end is out

by auto

• 7 years ago

1 answer

View Answer

What's the GPH?

by Kappa

• 10 years ago

1 answer

View Answer

Are both the paper and stainless filters not compatible with the E85 or can the stainless 45 micron filter be used with the E85?

by J-Ho

• 11 years ago

1 answer

View Answer

What is the overall length (item 91011743)? The heading says 6" but the specs say 3.75" Also item 91011733 looks the same but it is black. Is there any difference except color? and is it 6" long overall?

by wbjrace

• 12 years ago

1 answer

View Answer

do you sell the individual components I need a new -6an end cap

by JoeR

• 12 years ago

1 answer

View Answer

I have this filter with -8 end caps. Do you sell -10 end caps only. Thanks, Dal

• 14 years ago

1 answer

View Answer

why can't this gilter be used with e-85?

• 15 years ago

1 answer

View Answer

what micron rating is this filter

• 15 years ago

1 answer

View Answer

8 of 8 questions shown
