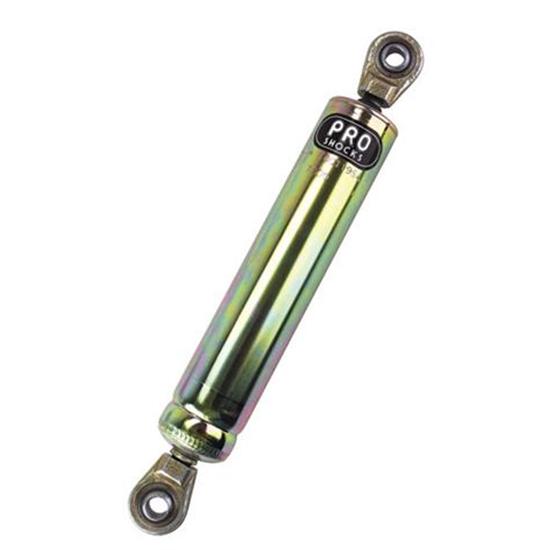

Pro Shocks® TA946 Pro TA Series 9 Inch Steel LB Shock, 4/6

Ask a Question

Shocks feature a gas cell and are IMCA approved
The TA series will work with the coil over kits
Has a smooth steel body with a 2" diameter

$169.99

Made to Order

This is a custom fabricated part. We estimate this item will ship on or before March 30th.

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Modified, Stock Car, Twin Tube Shock Type, Zinc Plated

Shocks feature a gas cell and are IMCA approved
The TA series will work with the coil over kits
Has a smooth steel body with a 2" diameter
Body has a zinc plating for added corrosion resistance
Both the upper and lower shock mounts have a 1/2" spherical rod end

See more details

Key Specs

MFG. Part #	TA946
Shock Type	Twin Tube
Shock Body Material	Steel
Shock Body Type	Smooth
Shock Body Size	Large Body

See more specs

Need To Know

This Product Will Ship Free

Made to Order

This custom item will ship when completed

Need help?

Quick and Easy Returns

Pro Shocks TA946 Details

Pro Shocks® new TA series steel shocks feature a gas cell and are IMCA approved. The TA series will work with the coil over kits. You must order end separately.

Comp. Length: 14-1/2"
Ext. Length: 23-1/2"

Charts

Pro Shocks® Steel LB Shocks Chart Application (GIF)

Guides & Documents

Shocks Guide/Document (582TA946)

CA Prop 65

Pro Shocks TA946 Specifications

KEY SPECS
MFG. Part #	TA946
Brand	Pro Shocks
Shock Type	Twin Tube
Shock Body Material	Steel
Shock Body Type	Smooth
Shock Body Size	Large Body

GENERAL
Shock Stroke Range	9.00" to 9.99"
Compression Valving	4
Rebound Valving	6
Shock Stroke	9.00
Upper Shock Mount	1/2" Spherical Rod End
Lower Shock Mount	1/2" Spherical Rod End
Extended Length Range	23.00" to 23.99"
Extended Length	23.5"
Compressed Length Range	14.00" to 14.99"
Compressed Length	14.5"
Finish	Zinc Plated
Coil-Over Compatible	Yes
Body Diameter	2.00"
Valve Positions	4 compression - 6 rebound
Sold in Quantity	Each
Notes	Shock ends are sold separately. Need two (2) of part# 582-200S
Shock Eyelet Width	.625"
Bolt Hole Circle	.500"
Hardware Included	No
