#582TA791

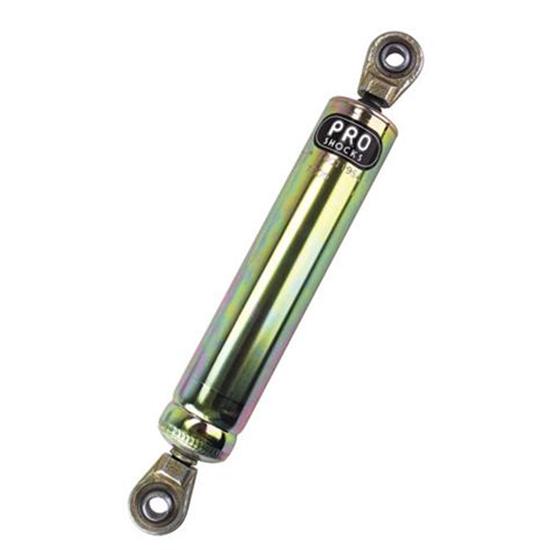

Pro Shocks® TA791 TA Series 7 In Stroke Steel LB Shock, 9/1
- Shocks feature a gas cell and are IMCA approved
- The TA series will work with the coil over kits
- Compression length measures 12-1/2" and has an extended length of 19-1/2"
See More
$169.99
each
Made to Order
This is a custom fabricated part. We estimate this item will ship on or before June 7th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Modified, Stock Car, Twin Tube Shock Type, Zinc Plated
- Shocks feature a gas cell and are IMCA approved
- The TA series will work with the coil over kits
- Compression length measures 12-1/2" and has an extended length of 19-1/2"
- Both the upper and lower shock mounts have a 1/2" spherical rod end
- They features a twin tube design with a large steel body
See more details
Key Specs
| Shock Type | Twin Tube |
| Shock Body Material | Steel |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
| Shock Stroke Range | 7.00" to 7.99" |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsMade to Order
This custom item will ship when completed
Need help?
855.313.9176Quick and Easy Returns
Return PolicyPro Shocks TA791 Details
Pro Shocks TA791 Details
Pro Shocks® new TA series steel shocks feature a gas cell and are IMCA approved. The TA series will work with the coil over kits. You must order end separately.
Comp. Length: 12-1/2"
Ext. Length: 19-1/2"
Charts
Guides & Documents
Pro Shocks TA791 Specifications
Pro Shocks TA791 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | TA791 |
| Brand | Pro Shocks |
| Shock Type | Twin Tube |
| Shock Body Material | Steel |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
| Shock Stroke Range | 7.00" to 7.99" |
| Compression Valving | 9 |
| Rebound Valving | 1 |
| Upper Shock Mount | 1/2" Spherical Rod End |
| Lower Shock Mount | 1/2" Spherical Rod End |
| Extended Length Range | 19.00" to 19.99" |
| Extended Length | 19.5" |
| Compressed Length Range | 12.00" to 12.99" |
| Compressed Length | 12.5" |
| Finish | Zinc Plated |
| Coil-Over Compatible | Yes |
| GENERAL | |
| Speedway Motors Catalog Part # | 582-TA791 |
| Shock Stroke | 7.00 |
| Body Diameter | 2.00" |
| Valve Positions | 9 compression - 1 rebound |
| Sold in Quantity | Each |
| Notes | Shock ends are sold separately. Need two (2) of part# 582-200S |
| Shock Eyelet Width | .625" |
| Bolt Hole Circle | .500" |
| Hardware Included | No |
