#582TA763
Pro Shocks® TA763 TA Series 7 In Stroke Steel LB Shock, 6/3
2 Reviews
|
Ask a Question
$169.99
each
Made to Order
This is a custom fabricated part. We estimate this item will ship on or before June 12th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Modified, Stock Car, Twin Tube Shock Type, Zinc Plated
See more details
Key Specs
Shock Type | Twin Tube |
Shock Body Material | Steel |
Shock Body Type | Smooth |
Shock Body Size | Large Body |
Shock Stroke Range | 7.00" to 7.99" |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsMade to Order
This custom item will ship when completed
Need help?
855.313.9176Quick and Easy Returns
Return PolicyPro Shocks TA763 Details
Pro Shocks TA763 Details

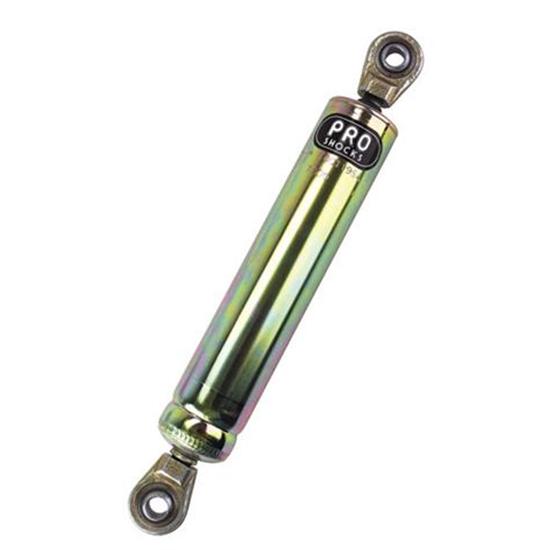

Pro Shocks® new TA series steel shocks feature a gas cell and are IMCA approved. The TA series will work with the coil over kits. You must order end separately.
Comp. Length: 12-1/2"
Ext. Length: 19-1/2"
Charts
Guides & Documents
Pro Shocks TA763 Specifications
Pro Shocks TA763 Specifications
KEY SPECS | |
---|---|
MFG. Part # | TA763 |
Brand | Pro Shocks |
Shock Type | Twin Tube |
Shock Body Material | Steel |
Shock Body Type | Smooth |
Shock Body Size | Large Body |
Shock Stroke Range | 7.00" to 7.99" |
Compression Valving | 6 |
Rebound Valving | 3 |
Upper Shock Mount | 1/2" Spherical Rod End |
Lower Shock Mount | 1/2" Spherical Rod End |
Extended Length Range | 19.00" to 19.99" |
Extended Length | 19.5" |
Compressed Length Range | 12.00" to 12.99" |
Compressed Length | 12.5" |
Finish | Zinc Plated |
Coil-Over Compatible | Yes |
GENERAL | |
Speedway Motors Catalog Part # | 582-TA763 |
Shock Stroke | 7.00 |
Body Diameter | 2.00" |
Valve Positions | 6 compression - 3 rebound |
Sold in Quantity | Each |
Notes | Shock ends are sold separately. Need two (2) of part# 582-200S |
Shock Eyelet Width | .625" |
Bolt Hole Circle | .500" |
Hardware Included | No |
