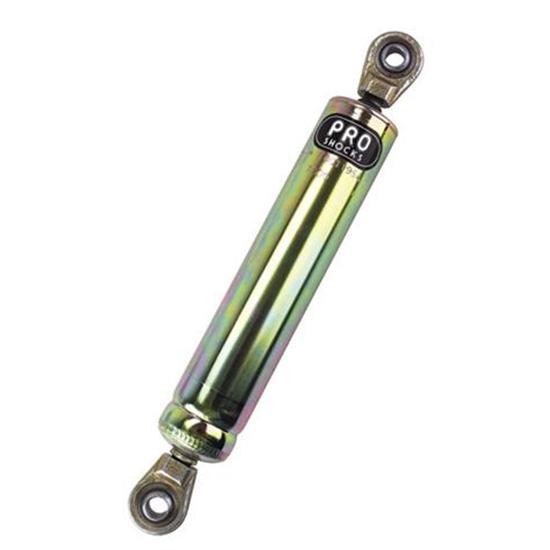

Pro Shocks® A746 TA Series 7 In Stroke Steel LB Shock, C4/R6

-9%

Pro Shocks® A746 TA Series 7 In Stroke Steel LB Shock, C4/R6
Pro Shocks

|

#582TA746

Pro Shocks® A746 TA Series 7 In Stroke Steel LB Shock, C4/R6

$195.00

/each

In Stock

$215.24

Save $20.24


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Modified, Stock Car, Twin Tube Shock Type, Zinc Plated

    See more details

    Key Specs

    Shock TypeTwin Tube
    Shock AdjustabilitySingle Adjustable
    Shock Body MaterialSteel
    Body Diameter2"
    Shock Body TypeSmooth
    See more specs

    Need To Know

    Made to Order

    This custom item will ship when completed

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    Pro Shocks TA746 Details

    Pro Shocks® new TA series steel shocks feature a gas cell and are IMCA approved. The TA series will work with the coil over kits. You must order end separately.

    Comp. Length: 12-1/2"
    Ext. Length: 19-1/2"

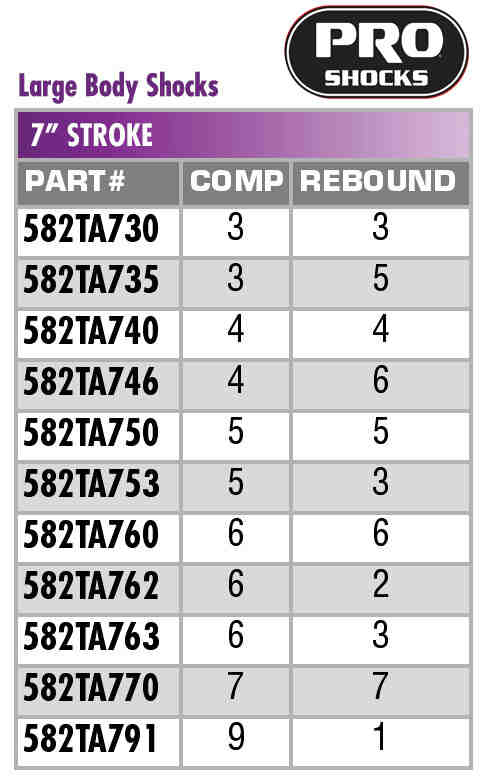

    Charts

    Pro Shocks TA746 Specifications

    KEY SPECS
    MFG. Part #TA746
    BrandPro Shocks
    Shock TypeTwin Tube
    Shock AdjustabilitySingle Adjustable
    Shock Body MaterialSteel
    Body Diameter2"
    Shock Body TypeSmooth
    Shock Body SizeLarge Body
    Shock Stroke Range7.00" to 7.99"
    PositionFront or Rear
    Compression Valving4
    Rebound Valving6
    Mount PositionStock Mount
    Upper Shock Mount1/2" Spherical Rod End
    Lower Shock Mount1/2" Spherical Rod End
    Extended Length Range19.00" to 19.99"
    Extended Length19.5"
    Compressed Length Range12.00" to 12.99"
    FinishZinc Plated
    Compressed Length12.5"
    Gas ChargedNo
    GENERAL
    RebuildableYes
    Coil-Over CompatibleYes
    Valve Positions4 compression - 6 rebound
    Shock Eyelet Width0.625"
    Bolt Hole Circle0.5"
    Hardware IncludedNo
    NotesShock ends are sold separatly. Need two part# 582-200S
    Sold in QuantityEach
