#9108352

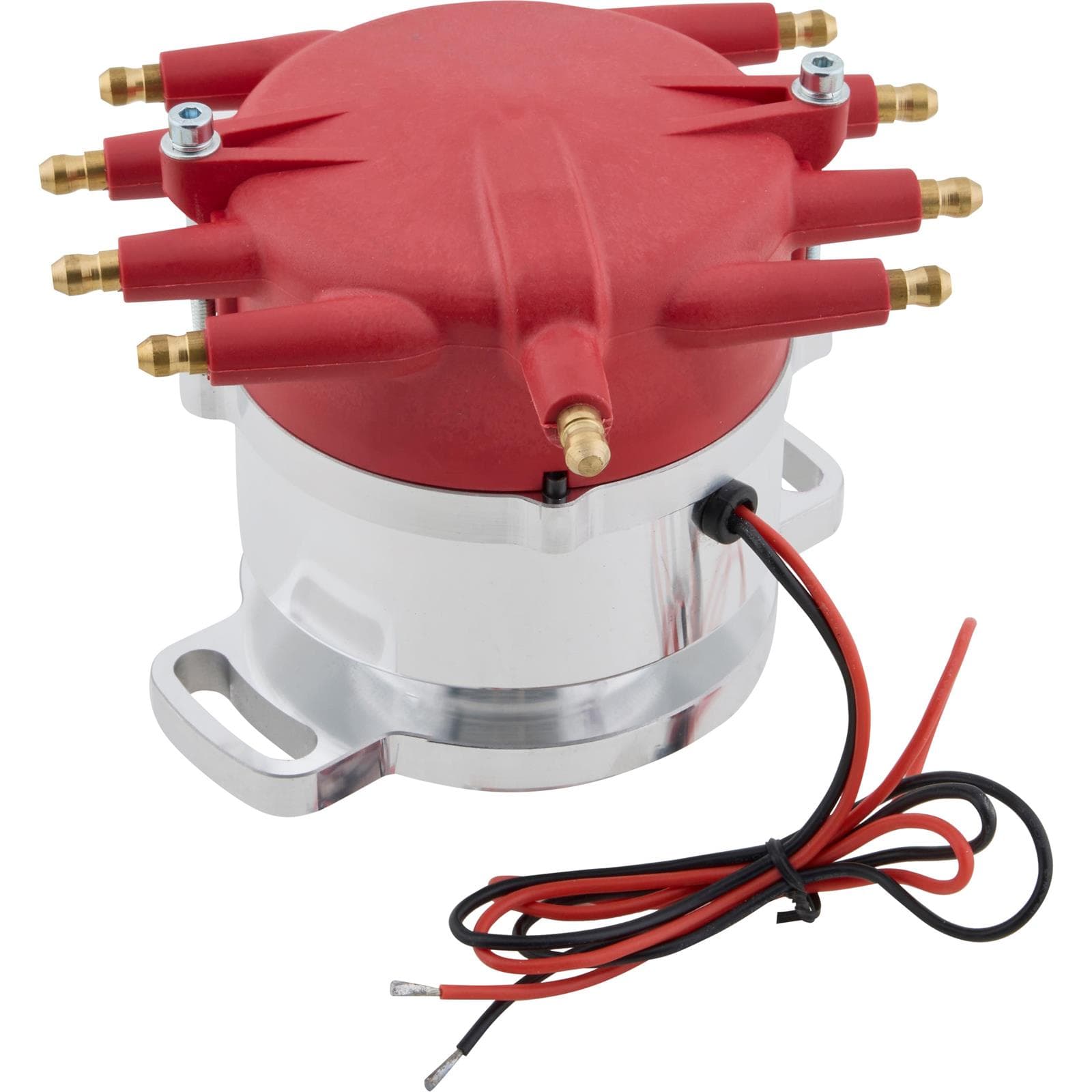

Pro Billet Aluminum Distributor, 1942-48 Ford Flat Head
- Magnetic trigger style
- Mechanical advance type
- Crab/HEI cap style
$166.99
/each
In Stock
Garage Sale alternatives: from $139.99
Quantity
Need Help? Call to Order
Add to a list
Select an engine to verify Fitment
Select Engine
Product Summary
Crab Cap Type, HEI / Male Cap Terminal Style
- Magnetic trigger style
- Mechanical advance type
- Crab/HEI cap style
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 9108352 Details
Speedway Motors 9108352 Details
This Pro Billet Aluminum Distributor is designed for the enthusiast that is serious about performance but needs the small cap size due to space considerations when installed. Precisioned CNC machined from billet 6061-T6 aluminum to exacting tolerances. The “spark plug” type terminals offer secure wire attachment. Under the brass terminals of the cap and rotor is an extremely accurate magnetic pickup that never requires adjustment along with an easy to adjust mechanical advance mechanism. Features heavy duty 1/2” steel shaft is guided in a long sintered bushing as well as a sealed ball bearing at the top to precisely locate the reluctor. This combination yields stable timing and spark delivery at any RPM.
- Magnetic trigger style
- Mechanical advance type
- Crab/HEI cap style
- No mechanical tach drive
- No slip collar
- Steel gear material
- No ignition box required
- Standard gear rotation
- Red cap color
- Billet aluminum housing material
- CNC machined housing finished
- Not for marine use
- Fits 1942-48 Ford Flat head
Charts
Guides & Documents
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
Speedway Motors 9108352 Specifications
Speedway Motors 9108352 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 9108352 |
| Brand | Speedway Motors |
| Cap Type | Crab |
| Advance Type | Mechanical |
| GENERAL | |
| Cap Terminal Style | HEI / Male |
| Trigger Style | Magnetic |
| Hall Effect | No |
| Sync Signal | No |
| Trigger Sensors | Single |
| Gear Material | Steel |
| Gear Rotation | Standard |
| Ignition Box Required | No |
| Mechanical Tach Drive | No |
| Slip Collar | No |
| Housing Material | Aluminum |
| Sold in Quantity | Each |
| Notes | 12 V Negative Ground CAP 5478541 ROTOR 54784673 MODULE 9108356 CONNECTOR 5478824 BUSHINGS AND SPRINGS, 5478464 |
Ratings & Reviews
4.8
12 Reviews
Customers appreciate the product's perfect fit and easy installation process. The distributor's adjustable feature stands out, eliminating the need to replace points. The product's quality is reflected in its competitive pricing and performance enhancement, particularly noticed in a classic vehicle, like a '48 Ford truck, suggesting superior functionality over competitors. The product's usability and practicality have led to positive recommendations and repurchase intentions.
Ratings & Reviews
4.8
12 Reviews
Customers appreciate the product's perfect fit and easy installation process. The distributor's adjustable feature stands out, eliminating the need to replace points. The product's quality is reflected in its competitive pricing and performance enhancement, particularly noticed in a classic vehicle, like a '48 Ford truck, suggesting superior functionality over competitors. The product's usability and practicality have led to positive recommendations and repurchase intentions.
4.8
12 reviews
5
10
4
2
3
0
2
0
1
0
Filter by Ratings
They Made It Right
4.0
4 months ago
Brucedeuceroadster
La.
Verified
Received broken parts/incomplete order. They quickly resolved the problem and shipped replacements.
Would Recommend
I would buy this product again
5.0
a year ago
Rick
Washington
Verified
I ordered this distributor for my 1946 239 Merc. engine that I have rebuilt and put a-lot into it and want it run well and not worry about points and timing changes. I haven't run it yet still building the car but I know someone who has one and I'm looking forward to having a smooth driving car. will add comments after engine is running.
Would Recommend
Super product very well made
5.0
a year ago
Greg
Luray Va
Verified
I custom built a flat head V8 trike and installed this electronic distributor and was impressed with the quality and easy installation, it started right up and ran perfect. If you don't have one get one you wont be sorry
Would Recommend
works great
5.0
a year ago
George
Grafton nh
Verified
I installed it in the middle of the adjustment. wired it up. and the car fired right up and ran after sitting for 30 years. I'm super happy
Would Recommend
Great distributor
5.0
a year ago
Dirty30
Lawrenceburg ky
Verified
Bought this for my 59ab flathead and it looks amazing an built very well.
Would Recommend
Perfect replacement for worn out crab distributor
5.0
a year ago
Tarrike
Cave Creek AZ
Verified
59A stock engine. Easily dropped in and took two minutes to time and engine is now running perfectly.
Would Recommend
Started first time.
5.0
a year ago
Grandpa Bob
Spring Branch, TX
Verified
I was upset when I first received this distributor because the cap has allen screw retainers rather than the bail retainers. This meant I could not use the distributor caps that I have on hand that match my sparkplug boots and connectors I started the return process ten minutes after opening the package. I slept, woke up and started changing the plug wire connectors and boots to fit the cap. This style of cap and connectors snap the plug wires onto the cap and you have to work to pull the connectors off of the cap. A very big plus! The engine started right up. I rotated the distributor with the engine running and a vacuum gauge connected. I watched the vacuum as I rotated the distro to get the best vacuum possible. The engine starts better than ever.
Would Recommend
Worked pretty well
4.0
a year ago
O dawg
Bellefontaine ohio
Verified
This distributor out of the box worked ok. Couldn't make the ignition timing work right for both low and high rpms, but did some reading and figured out that if I replaced one of the springs under the cap with a softer one, the advance would work right. Installed the softer spring and it worked well after that.
Would Recommend
This worked perfectly
5.0
2 years ago
Dr. Fine
Orlando
Verified
This distributor allows you to adjust the timing and has no points to replace. Very easy to install.
Would Recommend
yes
5.0
2 years ago
hatchetman
rancho cucamonga
Verified
good price works well
