#1750527

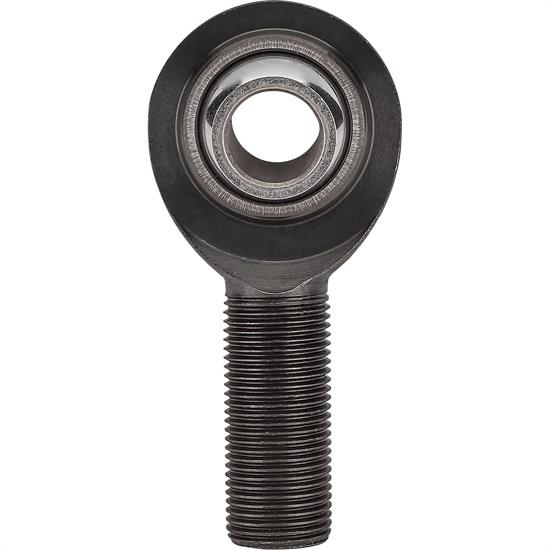

Pro-1 Chromoly Heim Joint Rod Ends, 3/4-16 RH Male, 5/8 Inch Hole
- This Pro-1 rod end is a general purpose 2-piece heavy duty rod end that will withstand extreme abuse
- The chromoly steel body and hardened steel ball without a race provides metal to metal contact for a precise no-slop joint
- Useful for a wide variety of applications including clutch, brake, steering, and suspension components for moderate to high horsepower applications
$12.49
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, RH Male Thread Type, Chromoly, Black
- This Pro-1 rod end is a general purpose 2-piece heavy duty rod end that will withstand extreme abuse
- The chromoly steel body and hardened steel ball without a race provides metal to metal contact for a precise no-slop joint
- Useful for a wide variety of applications including clutch, brake, steering, and suspension components for moderate to high horsepower applications
- 3/4"-16 RH male rolled threads ensure strength and precision
- 24 degrees of misalignment provides a wide range of motion without binding
Key Specs
| Thread Type | RH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 3/4"-16 |
| Material Type | Chromoly |
| Hole Diameter | 0.625" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 1750527 Details
Speedway Motors 1750527 Details
These Pro-1 rod ends are general purpose, 2-piece, heavy duty rod ends. They feature a chromoly steel body and are black oxide coated to resist corrosion. Heat treated, precision ground ball without a race (metal to metal contact). Pro-1 ends will withstand a greater static load than our "Standard" or "Precision" rod ends.
Applications: Steering & suspension components on moderate to high horsepower applications.
Assembly Tip: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.
Charts
Pro-1 Rod End Chart (GIF)
Guides & Documents
Speedway Motors 1750527 Specifications
Speedway Motors 1750527 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 1750527 |
| Brand | Speedway Motors |
| Thread Type | RH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 3/4"-16 |
| Material Type | Chromoly |
| Hole Diameter | 0.625" |
| Rod End Style | Metal-to-metal |
| Rod End Construction | 2-piece |
| Grease Fitting | No |
| Finish | Black Oxide |
| Color | Black |
| Bushing Material | Steel |
| Jam Nut Included | No |
| GENERAL | |
| Sold in Quantity | Each |
Ratings & Reviews
5
6 Reviews
Our product is lauded for its practicality, quality, and easy installation. Customers emphasize its perfect fit, stating it is "exactly what they needed." The product's easy installation has further enhanced user satisfaction, reducing effort and time. Notably, the product shines in solving suspension problems, with one user recommending it as a solution to eliminate the stickiness of travel. Its superior material quality, evident in the praise concerning its great work and look, positions our product above competitors. Above all, customers are thrilled with its performance and value, leading to intentions to repurchase.
Ratings & Reviews
5
6 Reviews
Our product is lauded for its practicality, quality, and easy installation. Customers emphasize its perfect fit, stating it is "exactly what they needed." The product's easy installation has further enhanced user satisfaction, reducing effort and time. Notably, the product shines in solving suspension problems, with one user recommending it as a solution to eliminate the stickiness of travel. Its superior material quality, evident in the praise concerning its great work and look, positions our product above competitors. Above all, customers are thrilled with its performance and value, leading to intentions to repurchase.
5
6 reviews
5
6
4
0
3
0
2
0
1
0
Filter by Ratings
Quality product
5.0
2 years ago
76fan
Arkansas
Verified
These hold up well in on our dirt late model.
Would Recommend
Exactly what I needed
5.0
3 years ago
Steve
Apopka, Fl
Verified
Great Part
Would Recommend
definetly buy again
5.0
6 years ago
MoJo
minnesota
Verified
Very easy to install
Would Recommend
Pro-1 Heim Joints
5.0
8 years ago
tom
Indianapolis
Verified
Work and look great
Would Recommend
SUSPENSION PROBLEM SOLVER
5.0
9 years ago
LOUIE
MADISON, WI
Verified
TRIANGULATED 4 BAR REAR SUSPENSIONS TYPICALLY BIND WHEN UTILIZING TRADITIONAL ROD ENDS. TO ELIMINATE THE STICKINESS OF THE TRAVEL, INSTALL QUALITY HEIM JOINTS ON ONE END!
Would Recommend
Great product!
5.0
10 years ago
TBOLT
Bondurant, IA
Verified
I got it at a great price & the product came in 2 days. The Speedway website is one of the best that I've encountered.
Would Recommend
Showing 6 of 6 reviews
