Pro-1 Chromoly Heim Joint Rod Ends, 3/4-16 LH Male, 5/8 Inch Hole
Pro-1 Chromoly Heim Joint Rod Ends, 3/4-16 LH Male, 5/8 Inch Hole
Speedway Motors

|

#1750727

Pro-1 Chromoly Heim Joint Rod Ends, 3/4-16 LH Male, 5/8 Inch Hole

  • This Pro-1 rod end is a general purpose 2-piece heavy duty rod end that will withstand extreme abuse
  • The chromoly steel body and hardened steel ball without a race provides metal to metal contact for a precise no-slop joint
  • Useful for a wide variety of applications including clutch, brake, steering, and suspension components for moderate to high horsepower applications
See More

Thread:

Left Hand

Right Hand

$12.49

/each

In Stock


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, LH Male Thread Type, Chromoly, Black

  • This Pro-1 rod end is a general purpose 2-piece heavy duty rod end that will withstand extreme abuse
  • The chromoly steel body and hardened steel ball without a race provides metal to metal contact for a precise no-slop joint
  • Useful for a wide variety of applications including clutch, brake, steering, and suspension components for moderate to high horsepower applications
  • 3/4"-16 LH male rolled threads ensure strength and precision
  • 24 degrees of misalignment provides a wide range of motion without binding
See more details

Key Specs

Thread TypeLH Male
Rod End AttachmentMale Threads/Eyelet
Thread Pitch3/4"-16
Material TypeChromoly
Hole Diameter0.625"
See more specs

Need To Know

Need help?

855.313.9176
View the Help Center

Quick and Easy Returns

Return Policy

Speedway Motors 1750727 Details

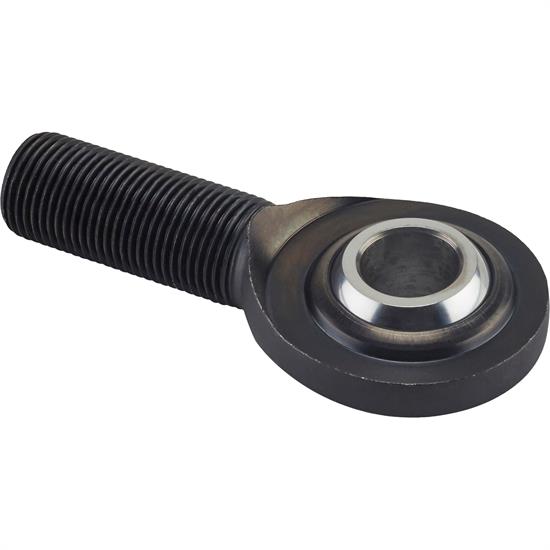

These Pro-1 rod ends are general purpose, 2-piece, heavy duty rod ends. They feature a chromoly steel body and are black oxide coated to resist corrosion. Heat treated, precision ground ball without a race (metal to metal contact). Pro-1 ends will withstand a greater static load than our "Standard" or "Precision" rod ends.

Applications: Steering & suspension components on moderate to high horsepower applications.

Assembly Tip: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

Charts

Speedway Motors 1750727 Specifications

KEY SPECS
MFG. Part #1750727
BrandSpeedway Motors
Thread TypeLH Male
Rod End AttachmentMale Threads/Eyelet
Thread Pitch3/4"-16
Material TypeChromoly
Hole Diameter0.625"
Rod End StyleMetal-to-metal
Rod End Construction2-piece
Grease FittingNo
FinishBlack Oxide
ColorBlack
Bushing MaterialSteel
Jam Nut IncludedNo
GENERAL
Sold in QuantityEach

Ratings & Reviews

4.9

10 Reviews

Overall Assessment

Customers highly recommend our product for its notable strength and perfect fit, emphasized by those who used it for various projects including race cars, street cars, and mud racers. Key features include the ability to replace heim joints on a 4-link or four bar links, significantly enhancing durability. Users also compliment its great value for cost and usability in diverse applications, such as custom radius arms for hot rods. Customers also value the easy compatibility with a variety of vehicles.

Write A Review

4.9

10 reviews

5

9

4

1

3

0

2

0

1

0

Filter by Ratings

Just in Heim

5.0

9 months ago

Ken

Seattle WA

Verified

Setting up a four link with 3/4 inch Heims and the Wats link uses 5/8 bolts. These heavy duty joints with a 5/8 bolt hole; allowing for common 1-1/4 tubing

Would Recommend

If I need one I would get one

4.0

3 years ago

Z

Taft Ca

Verified

🤷‍♂️

Would Recommend

Exactly what I needed

5.0

3 years ago

Steve

Apopka, Fl

Verified

Great part

Would Recommend

i would buy these again

5.0

5 years ago

steve

ravenel sc

Verified

replaced the heim joints on my 4link

Would Recommend

Next. Race car project

5.0

5 years ago

Acceleration eng.

Rifle colorado

Verified

Building Vega street. / race car. With bbc.

Would Recommend

I would buy this product again

5.0

6 years ago

MoJo

Minnesnowda

Verified

replaced the four bar links with these.

Would Recommend

Great product and price.

5.0

8 years ago

Bob

Seward Ne.

Verified

I put these on my figure eight car, they are way stronger than factory ones.

Would Recommend

Great joints

5.0

8 years ago

JROD

Beaver, Pa

Verified

Perfect fit for my custom radius arms on my hot rod

Would Recommend

gets the job done

5.0

10 years ago

mudracer

West virginia

Verified

Mud racer

Great product!

5.0

10 years ago

TBOLT

Bondurant, IA

Verified

I got the product for a great price & received the product 2 days after I ordered it. The Speedway website is one of the best I've encountered.

Would Recommend

Showing 10 of 10 reviews

Questions & Answers

1 Question • 1 Answer

How much breaking force are these rated for?

by Full Pull

• 10 years ago

1 answer

View Answer
