#1750705

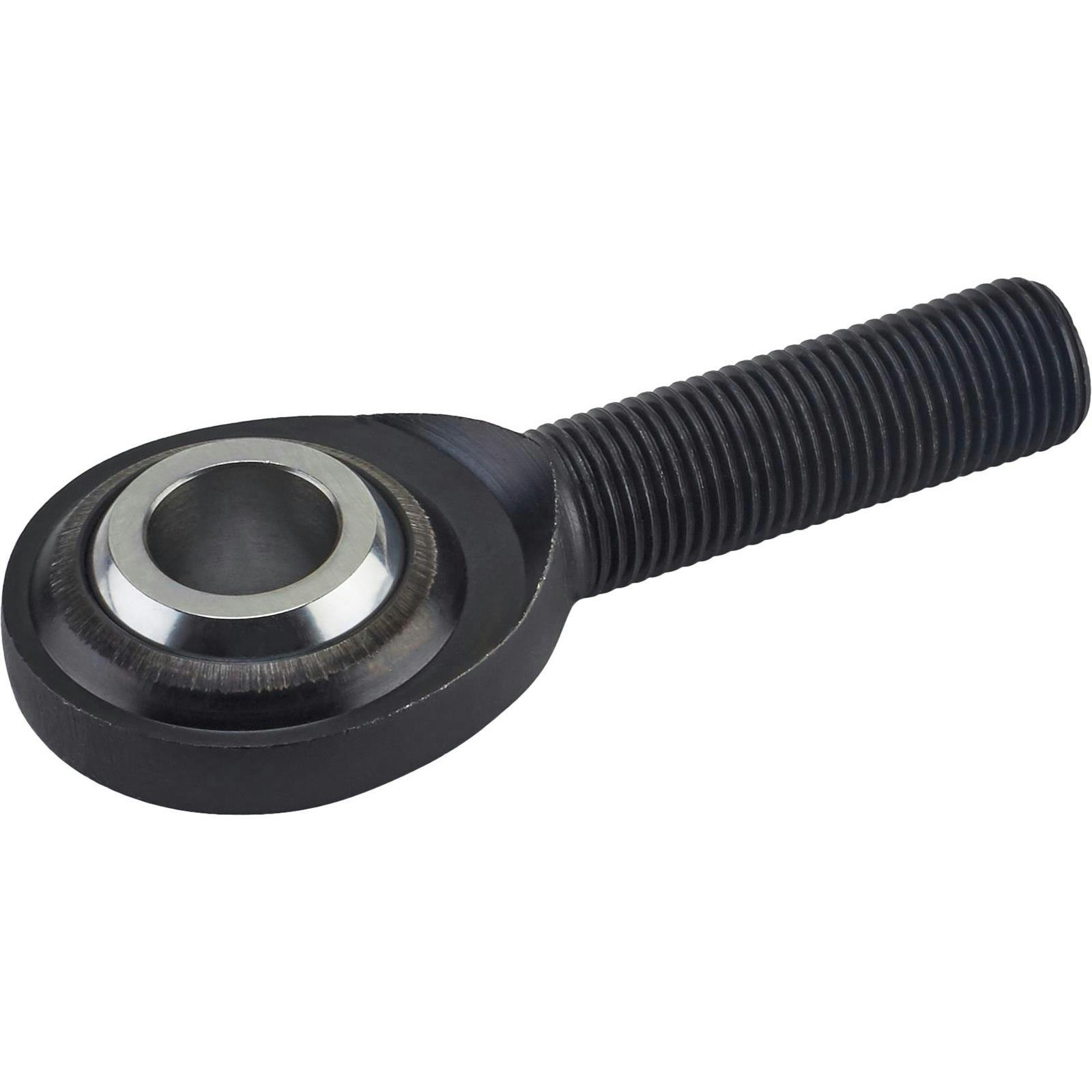

Pro-1 Chromoly Heim Joint Rod Ends, 1/2-20 LH Male
- This Pro-1 rod end is a general purpose 2-piece heavy duty rod end that will withstand extreme abuse
- The chromoly steel body and hardened steel ball without a race provides metal to metal contact for a precise no-slop joint
- Useful for a wide variety of applications including clutch, brake, steering, and suspension components for moderate to high horsepower applications
$14.99
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, LH Male Thread Type, Chromoly, Black
- This Pro-1 rod end is a general purpose 2-piece heavy duty rod end that will withstand extreme abuse
- The chromoly steel body and hardened steel ball without a race provides metal to metal contact for a precise no-slop joint
- Useful for a wide variety of applications including clutch, brake, steering, and suspension components for moderate to high horsepower applications
- 1/2"-20 LH male rolled threads ensure strength and precision
- 20 degrees of misalignment provides a wide range of motion without binding
Key Specs
| Thread Type | LH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 1/2"-20 |
| Material Type | Chromoly |
| Hole Diameter | 0.5" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 1750705 Details
Speedway Motors 1750705 Details
Applications: Steering & suspension components on moderate to high horsepower applications.Assembly Tip: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.
Charts

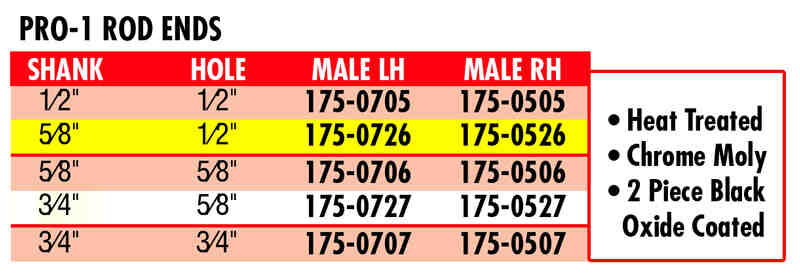

Pro-1 Rod End Chart (GIF)
Guides & Documents
Speedway Motors 1750705 Specifications
Speedway Motors 1750705 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 1750705 |
| Brand | Speedway Motors |
| Thread Type | LH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 1/2"-20 |
| Material Type | Chromoly |
| Hole Diameter | 0.5" |
| Rod End Style | Metal-to-metal |
| Rod End Construction | 2-piece |
| Grease Fitting | No |
| Finish | Black Oxide |
| Color | Black |
| Bushing Material | Steel |
| Jam Nut Included | No |
| GENERAL | |
| Sold in Quantity | Each |
Ratings & Reviews
4.7
11 Reviews
Customers laud the product's superior quality, robustness, and practicality, frequently employing these rod ends in a variety of applications, such as tie rod ends on ATVs, rack & pinion conversions, suspension systems, and racing cars. The rod ends are reliable and durable, supporting precise adjustments and modifications, thereby saving users from spending more on repairs. With their great fit and functionality, users find them beneficial in enhancing vehicle performance. There's resounding agreement on their value for money due to their high quality and efficient performance.
